High-speed spiral door

HSD high-speed spiral door is a new type of metal industrial door that integrates speed, energy saving, sealing, wind resistance, and environmental protection. It has strong reliability and practicality, and its operating speed is more than 6 times that of industrial sliding doors. With work efficiency, hard fast doors are gradually replacing industrial sliding doors.

The door panel is produced on a large-scale assembly line using French technology. The interior of the door panel is filled with flame-retardant polyurethane industrial insulation material, and the bridge breaking design can isolate indoor and outdoor temperature loss, effectively insulation and energy-saving. The two ends are connected by hinges, and the door panels are connected by double-sided sealing strips to ensure sealing and effectively resist strong convective wind pressure.

High-speed spiral door can prevent outsiders from entering while also resisting weather changes. They can block indoor and outdoor air convection and are used in frequent access channels, making them an ideal choice for industrial energy conservation and consumption reduction.

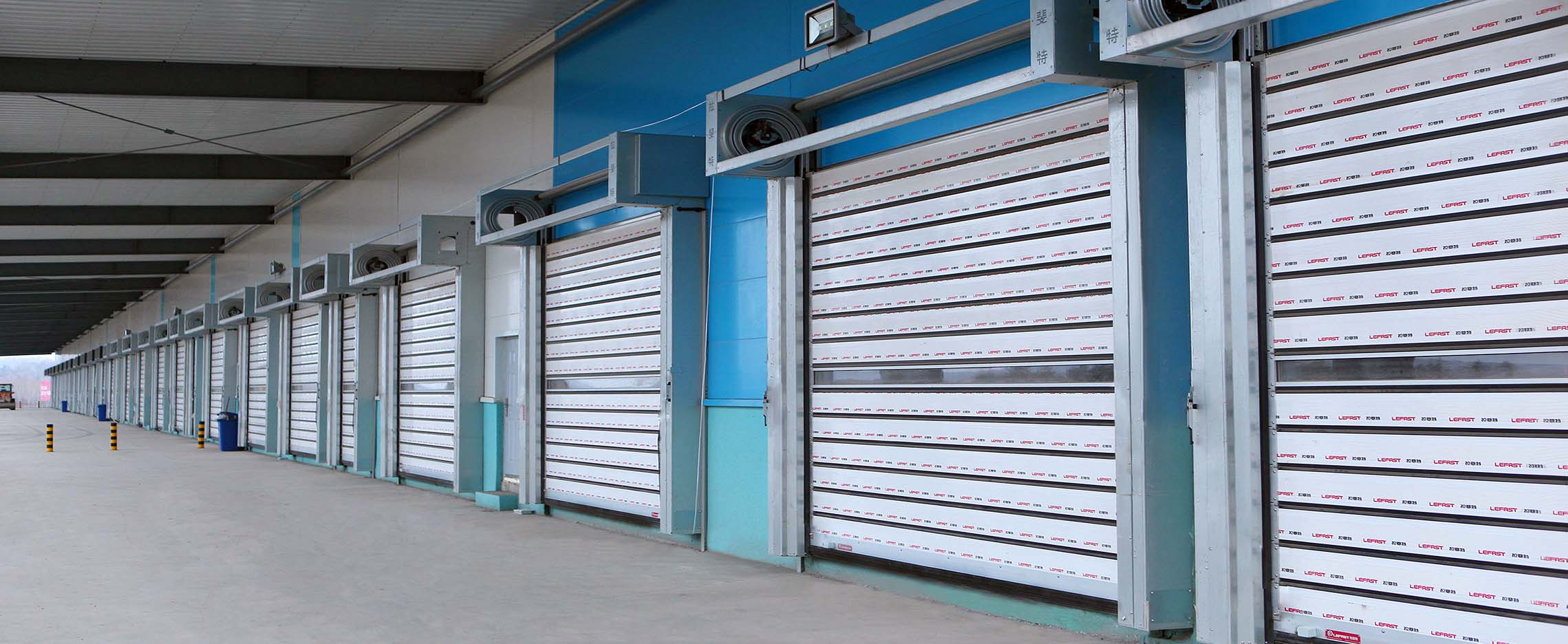

Widely used in equipment manufacturing enterprises, automobile manufacturing enterprises, food processing enterprises, construction, commercial real estate, fire protection, underground garages, etc., as exterior doors for factory buildings, entrance doors for automobile production lines, frequent logistics channels, and entrance and exit doors for large garages, it meets various requirements of customers for wind resistance, insulation, speed, dust prevention, and energy conservation.

High-speed spiral door - Features -

After 20 years of development, Lefast has become a well-known brand in the industry and is widely favored by users.

Fast and stable operating speed

Opening speed: 0.8m/s~2.1m/s (adjustable). ·Archimedean spiral principle, double-layer turbine structure, reduces resistance, reduces friction, and ensures smoother high-speed operation.
Wind resistant insulation

The thickness of the door panel is 43/80mm, and the height is 220mm. The door panel is made of double-layer stretched aluminum sheet and is made of one-time composite material. The interior is filled with polyurethane industrial insulation material, and the bridge insulation design effectively saves energy and provides insulation. Thermal insulation: National standard level 3 Wind resistance: meets national standard level 3 (relative deflection under 0.5kp wind pressure ＜ L/180)
Frequent opening and closing, low failure rate

Standard Lefast customized servo motor and control system, stable performance, ensuring safety. Thousands of daily opening and closing times. Total fault free operation exceeding 500000 times.
Intelligent and convenient, safe and reliable

Radar, geomagnetic, remote control, Bluetooth, facial recognition, APP remote control and other control systems are available for selection! One click start, interlock, linkage, and on-demand customization. Photo eyes, safety light curtain, and safety airbag rebound protection in case of obstruction. Multiple protective measures for objects and personnel.

Product Details

According to the use of the site, the color of the fast door can be selected arbitrarily

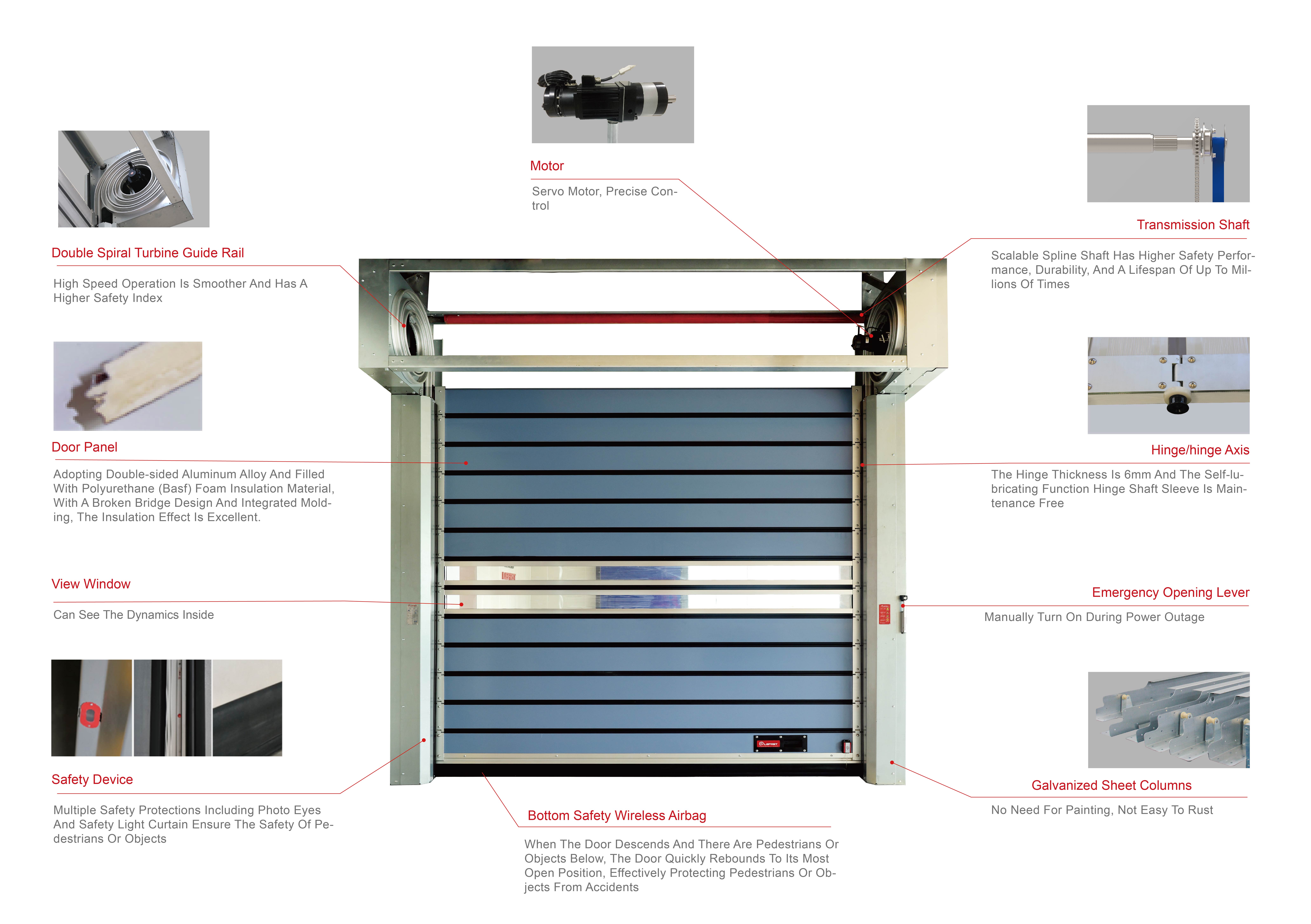

Product Particulars
Product Parameter

硬块分解图-英文_画板 1.jpg

High-speed spiral door

HSD4322/8022

The high-speed spiral door is divided into HSD4322/8022 models according to the thickness of the door panel. HSD4322 has a door panel thickness of 43cm, HSD8022 has a door panel thickness of 80cm, and HSD8022 is designed for large openings.

Product parameters

Max Size（WxH）：Width HSD4322：1400mm~6000mm Height HSD4322：1800mm~6500mm

Width HSD8022：3000mm~8200mm Height HSD8022：2300mm~8950mm

Running speed： Opening speed0.8m/s ~2.1m/s(Related to door size), adjustable

wind resistance：Meets national standard level 3 (relative deflection<L/180 under 0.5kp wind pressure)

Water tightness：△ P ≥ 700pa, reaching the national standard level 6

Air tightness：0.62m ³/(m ² · h), meeting the national standard level 8

Thermal insulation：meeting the national standard level 3

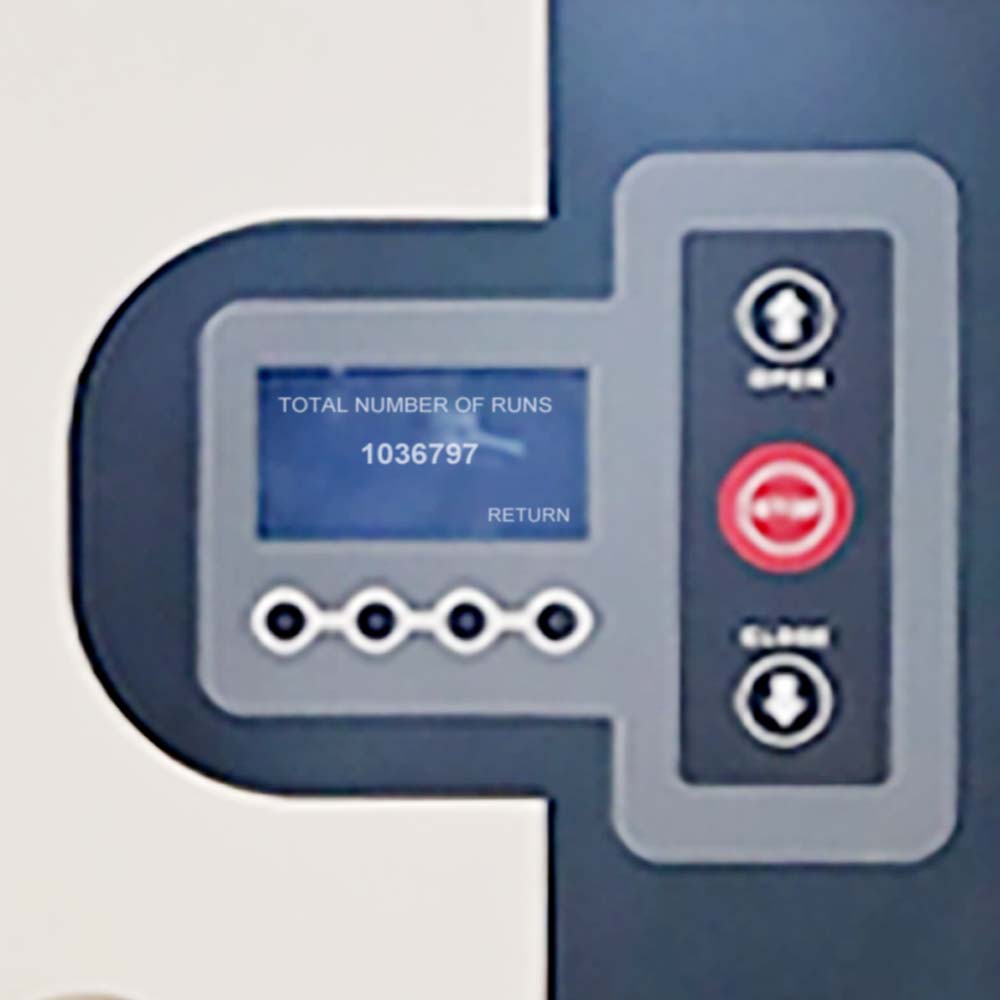

Run detection：Running thousands of times a day, with a total of over 1 million fault free runs

Door panel material：A double-layer stretched aluminum plate with a thickness of 43/60/80mm and a height of 220mm is composite in one go, filled with flame-retardant and insulation polyurethane and treated with high-pressure foaming inside

Control system：Eye photo / Light curtain, remote control, geomagnetic field, radar, facial recognition

Color Customization

颜色_画板 1_画板 1 副本.jpg

Instructions for use

If any abnormalities are detected, please stop the operation immediately! Pay attention to safety.

01
During the operation, people and objects are not allowed to fall within the range of the door body.
02
It is strictly prohibited to move under the door when it is closed.
03
When opening and closing the high-speed door, do not hit the door body to affect its normal operation.
04
Do not contaminate the track and pulley as it may affect operational stability.
05
Please ensure that there are no foreign objects or debris inside the track during operation to avoid jamming the door body.
