High-speed silding cold-storage door

High-speed silding cold-storage door, with heat preservation, fast, energy saving, high efficiency, anti-collision features, suitable for all kinds of cold storage, cold storage and cold chain series of storage areas.
High-speed operation, energy-saving and environmental protection, improve the transfer efficiency of the reservoir area, protect the environmental safety of the cold chain, reduce operating costs, improve the core competitiveness of enterprises.

The high torque servo motor is used in the high-speed silding cold-storage door, which has the advantages of large power, accurate position, double position design and multi-interface. Use worry-free.
The door body adopts PVC curtain and polymer flexible door body to prevent door frame from running cold and prevent door frame from freezing. One time pouring molding.

High-speed silding cold-storage door - Features -

High-speed silding cold-storage door, with heat preservation, fast, energy saving, high efficiency, anti-collision features, suitable for all kinds of cold storage, cold storage and cold chain series of storage areas.

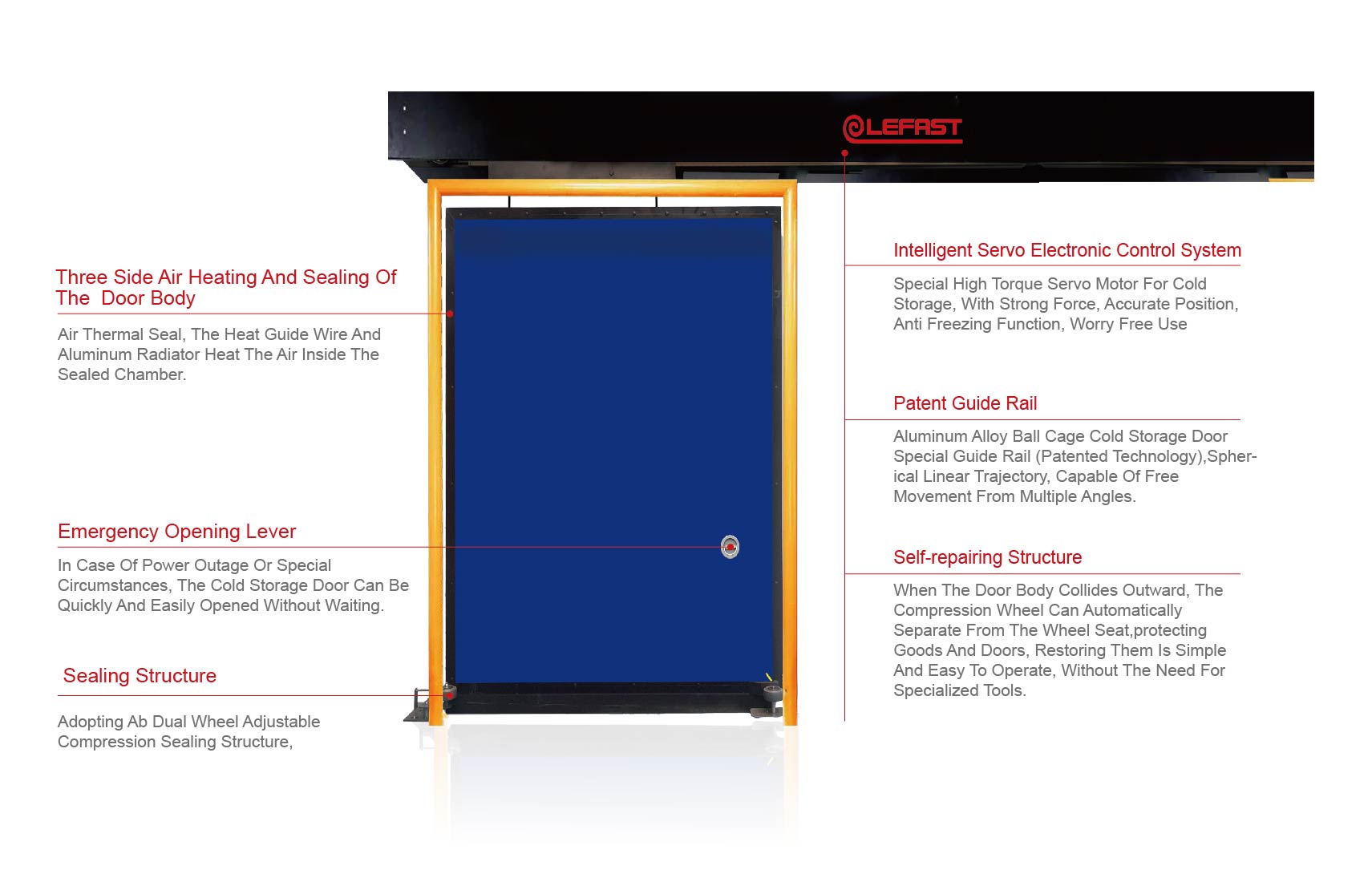

Intelligent Servo Electronic Control System

Special high torque servo motor for cold storage, with strong force, accurate position, anti freezing function, worry free use.
Self-repairing Structure

When the door body collides outward, the compression wheel can automatically separate from the wheel seat,Protecting goods and doors, restoring them is simple and easy to operate, without the need for specialized tools.
Patent Guide Rail

Aluminum alloy ball cage cold storage door special guide rail (patented technology),Spherical linear trajectory, capable of free movement from multiple angles.
Three Side Air Heating And Sealing Of The Door Body

Air thermal seal, the heat guide wire and aluminum radiator heat the air inside the sealed chamber.

Product Details

According to the use of the site, the color of the fast door can be selected arbitrarily

Product Particulars
Product Parameter

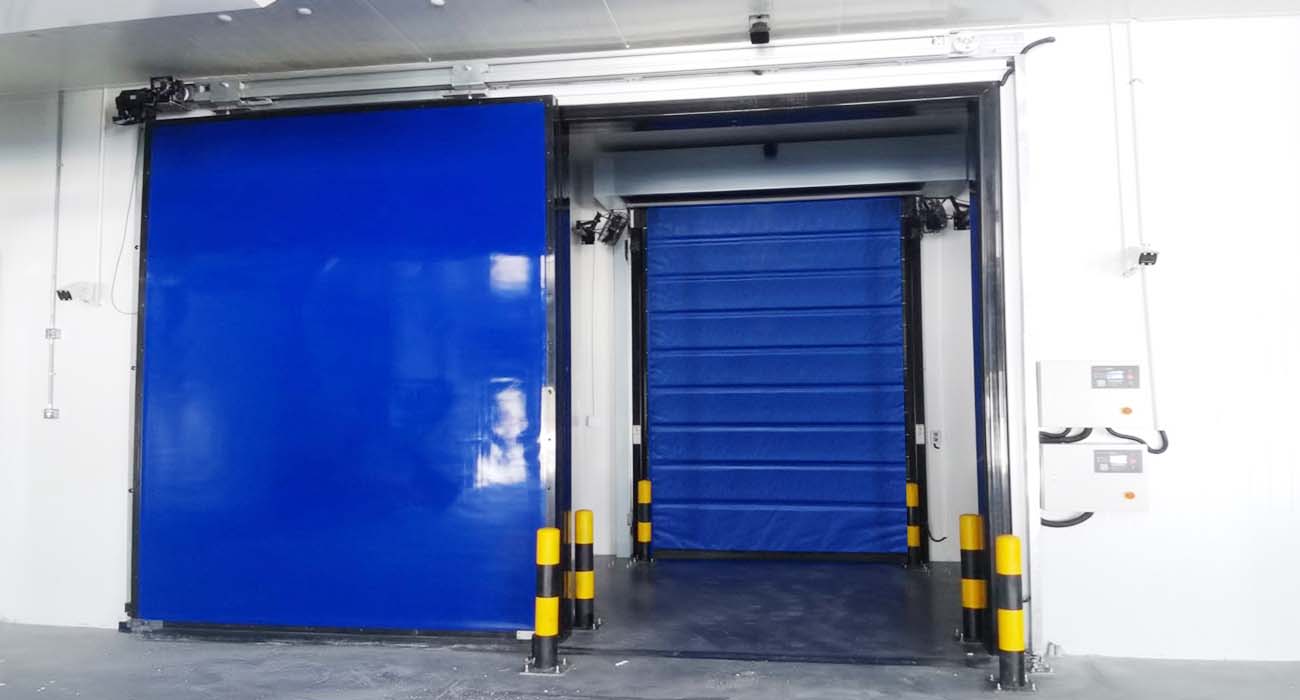

High-speed silding cold-storage door

The high-speed sliding door of the cold storage has the characteristics of insulation, speed, energy saving, high efficiency, anti-collision automatic recovery, and maintenance free. It is suitable for cold chain storage areas, high-speed operation, energy saving and environmental protection, improves work efficiency, and reduces enterprise operating costs. Sufficient lateral translation space is required on one side of the entrance.

Product parameters

Max Size（WxH）： W:1800mm~5000mm( Single opening） 3000-4000mm(double opening), H:1400~3000mm

Application location：Dedicated for cold chain storage area (0 ℃~-30 ℃)

Running speed：0.6m/s~1.2m/s（Adjustable）

Door curtain：Double layer low-temperature resistant polymer PVC material, with the inner cavity filled with low-temperature resistant polymer elastomer door body

Defroster：Three sides adopt unique D-type insulation, air heating and sealing

Anti-collision device：The door body is subjected to impact and the pressure wheel separates from the wheel seat, requiring manual restoration without the need for tools. It can quickly and automatically recover after deformation

Operation mode：High speed lateral movement, floating open and sinking closed

Control system：Remote control, radar, loops detector, pull-code switch

Color Customization

Other color customization consulting service personnel

冷库_画板 1.jpg

Instructions for use

If any abnormalities are detected, please stop the operation immediately! Pay attention to safety.

01
During the operation, people and objects are not allowed to fall within the range of the door body.
02
It is strictly prohibited to move under the door when it is closed.
03
When opening and closing the high-speed door, do not hit the door body to affect its normal operation.
04
Do not contaminate the track and pulley as it may affect operational stability.
05
Please ensure that there are no foreign objects or debris inside the track during operation to avoid jamming the door body.
