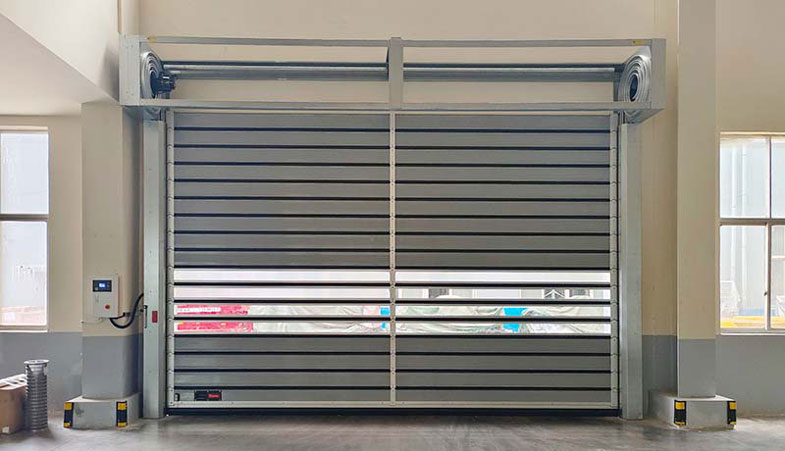

high-speed Spiral door is very suitable for use as the outside door of the workshop, and it can also be used as the indoor partition door, the fast material flow door, the public parking garage door, the three-dimensional garage door, the fire garage door.

Why is this industrial fast door popular? Because it runs fast to improve work efficiency, heat preservation and sealing, safe and stable.

First, speed

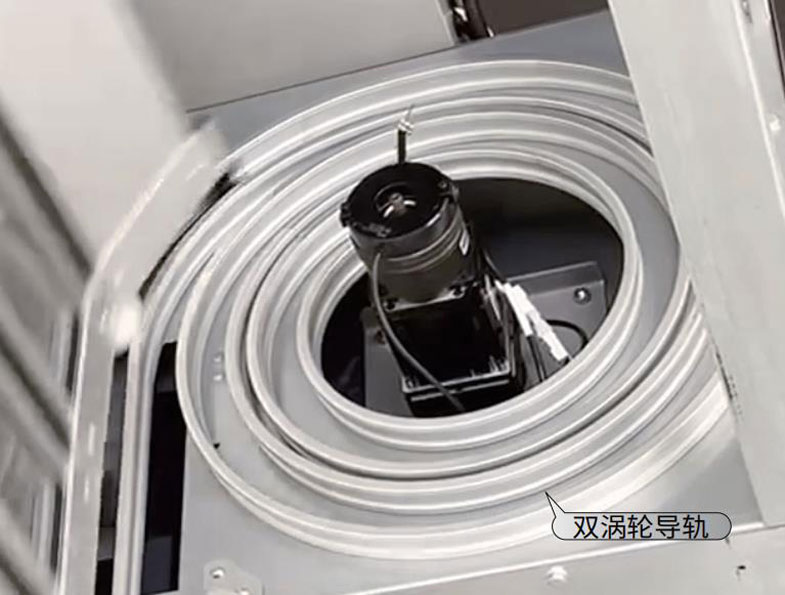

The track structure is the Archimedes spiral turbine aluminum alloy track, the control system is a servo control system, the opening speed is 0.8-2.5 m/s adjustable, the 4-meter high door opens to the top within 3 seconds, and can be easily opened and closed hundreds of thousands of times a day, the high efficiency is very suitable for the use of logistics transport more frequent channels. Safe and stable operation and long service life.

Second, insulation performance

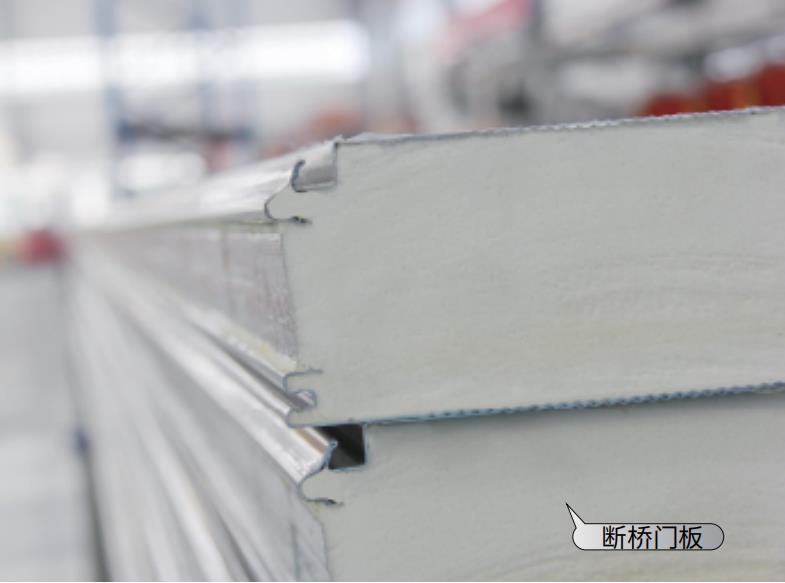

The door panel adopts the broken bridge insulation structure (sample block) design (no other manufacturers), the thickness of 43/80mm two specifications (sample block), flame retardant (ignition test), insulation and cold resistance effect is good (with test report), the surface is emboweled corrugated, beautiful and generous, the size can be customized, the opening width is up to 10 meters, the opening height is up to 9 meters, a variety of door panel colors can also be selected. Industrial gray, beige gray, aluminum alloy primary color, sand gold, white, flame blue, fire red...

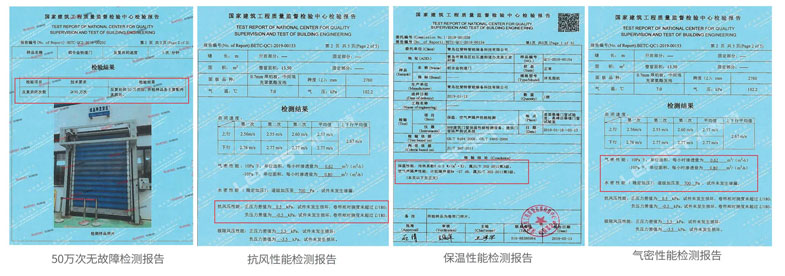

Third, sealing performance (matching surface test report)

Both sides of the door panel are connected by 6mm thick aluminum alloy hinges, the door panel and the door panel are connected by bidirectional sealing rubber strips, the door panel and the column are sealed on both sides of the flocking side, the bottom seal is designed between the ground of the door body, and the top of the door body is equipped with a top seal, so that the door body is sealed all around, and this is dust proof, insect proof and smell proof can also resist 12 wind

Take a look again, the material of the door column and the top connection mechanism is 2.5mm thick non-floral galvanized steel plate, the surface is not afraid of scratches and harsh environment, and stainless steel plate can be used according to the requirements of the use environment.

In addition to good structure and good materials, the safety performance of this industrial fast door is more reassuring, a variety of safety anti-smashing protection functions, infrared beam (demonstration), through the long light curtain (demonstration), safety bottom edge (demonstration), effectively ensure the safety requirements of the use of the site.

At the same time, we also designed emergency measures for this industrial fast door: power failure emergency opening (demonstration), even if the power failure, you can easily open the door within 3 seconds

In order to facilitate safety management, transparent observation Windows can be installed on the door panel to see the traffic of vehicles or personnel in advance

This industrial fast rolling shutter door is used in the factory workshop, which is very worrying and reassuring!
