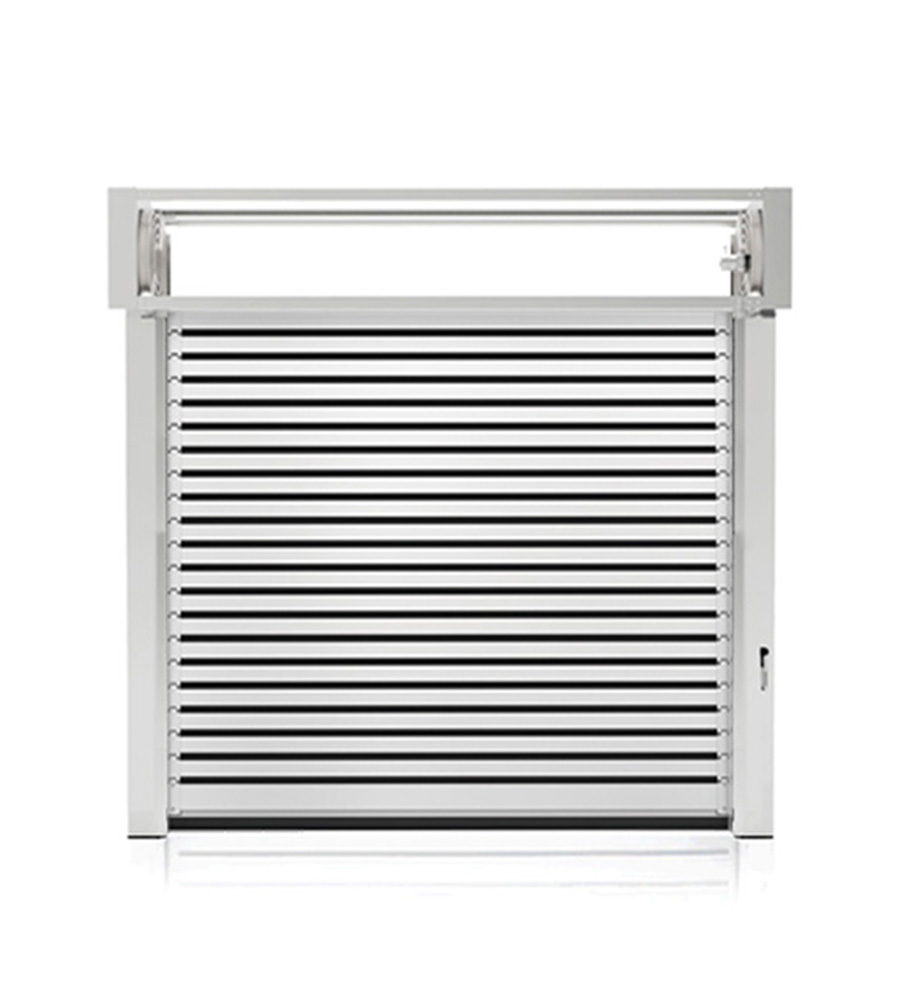

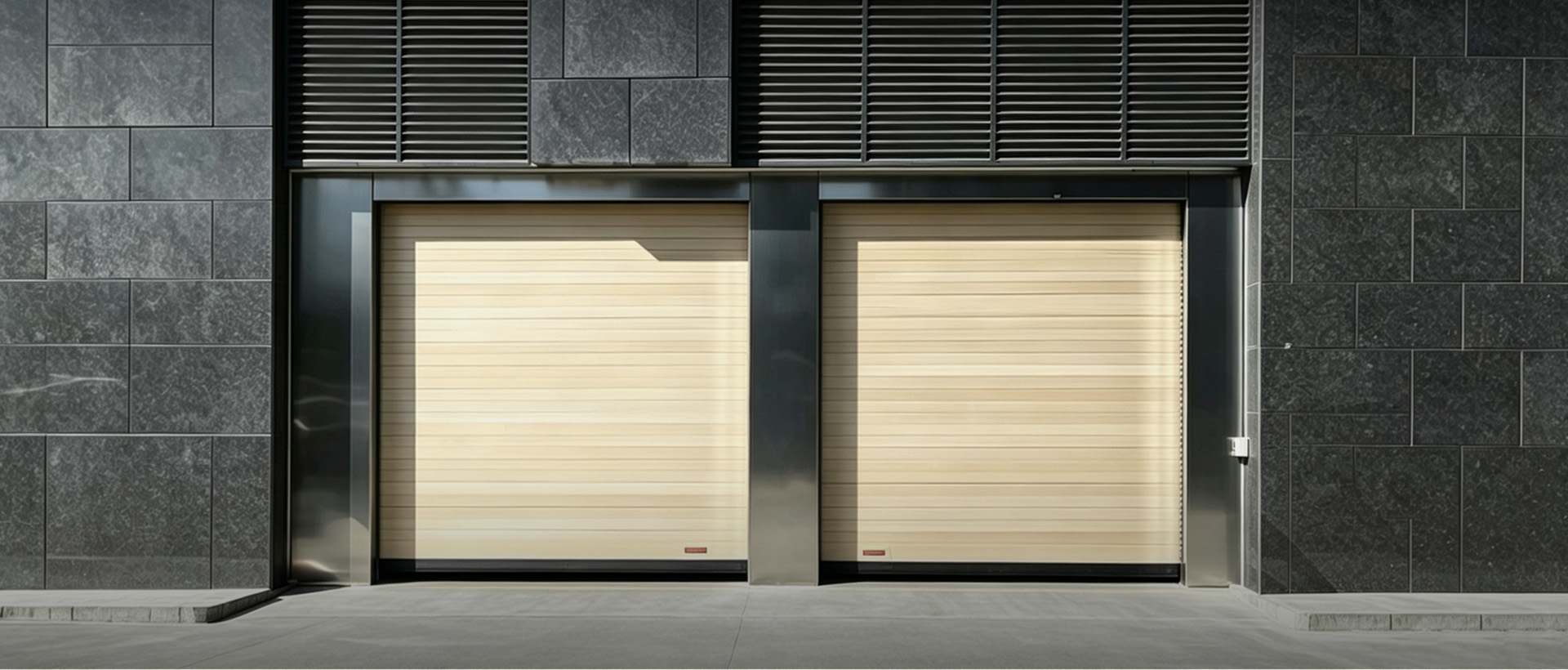

HSD23116
Space-Saving Spiral Door
High-speed performance for space-constrained installations.
HSD23116 combines a compact structural design with reliable high-speed operation, insulated panels and airtight sealing, making it suitable for facilities with restricted headroom or limited installation space.
- Space-Saving Design
- Insulated Panels
- Indoor & Outdoor Use
Space Saving
High-Speed Access
Smart Control
Cost Efficient Solution

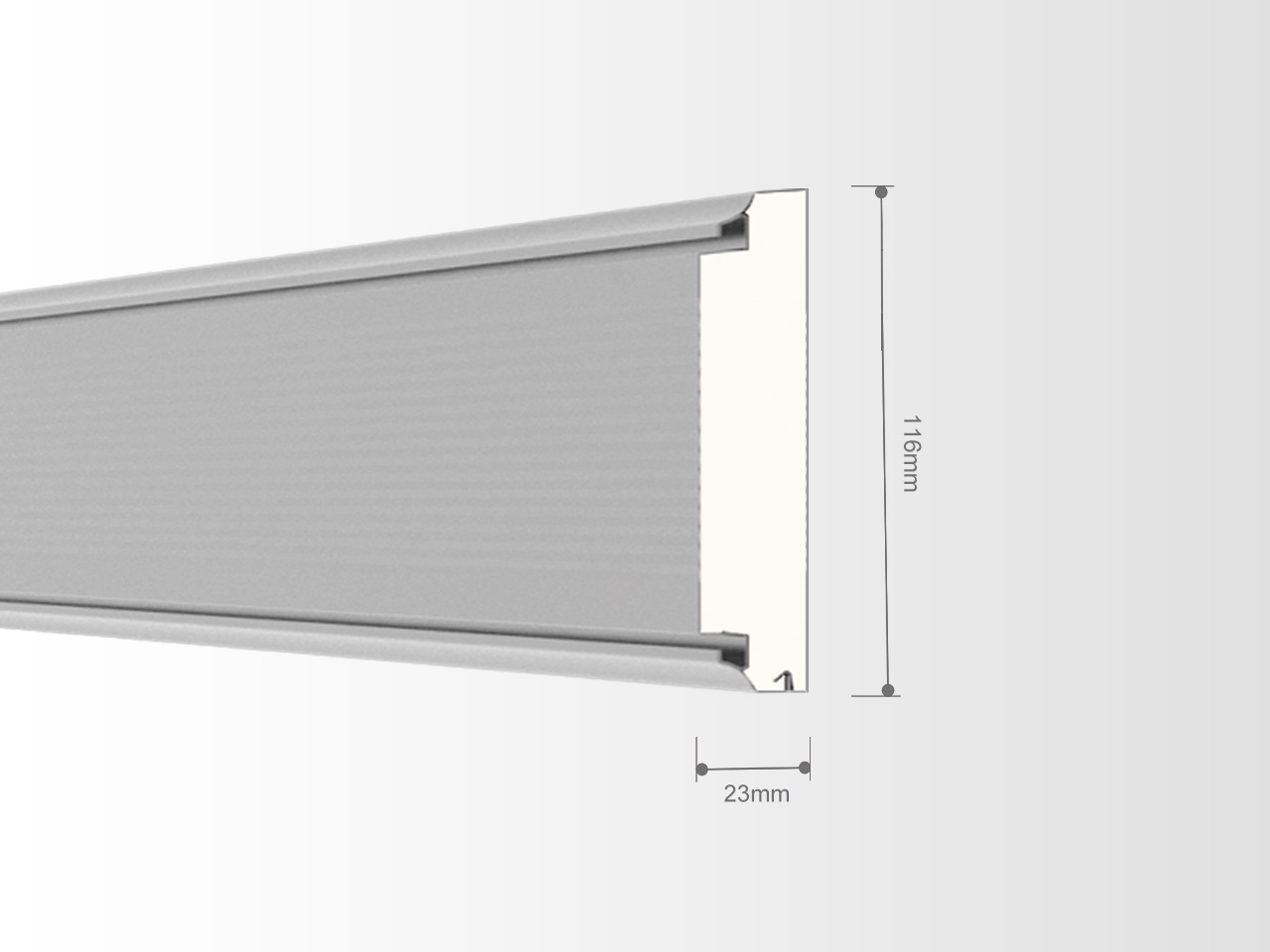

Panel Specifications
Safety Protection System
Need the Right Door for Your Project?
Get professional selection support based on your opening size, wind load, environment, and project requirements.
- ✓ Opening Size
- ✓ Application Environment
- ✓ Wind Load Requirement
| Model | Max Width | Opening Speed Up to | Best For |
|---|---|---|---|
| HSD23116 | 6000 mm | 2.0 m/s | General Industrial Access Budget-Sensitive Projects |
| HSD27150 | 4000 mm | 2.0 m/s | General Industrial Access Budget-Sensitive Projects |
| HSD4322 | 6000 mm | 2.5 m/s | Manufacturing Facilities Fire & Rescue Facilities |
| HSD4322Q | 12000 mm | 1.5 m/s | Wind-Exposed Areas Outdoor Applications |
| HSD6022 | 8000 mm | 2.0 m/s | Larger Traffic Routes Facilities Requiring Wider Access |
| HSD8022 | 10000 mm | 1.8 m/s | Large Industrial Access Points High-Traffic Facilities |
| HSD10022 | 12000 mm | 1.5 m/s | Oversized Access Points Facilities Requiring Enhanced Structural Stability |
Related Projects
Real projects. Reliable performance. Proven results.

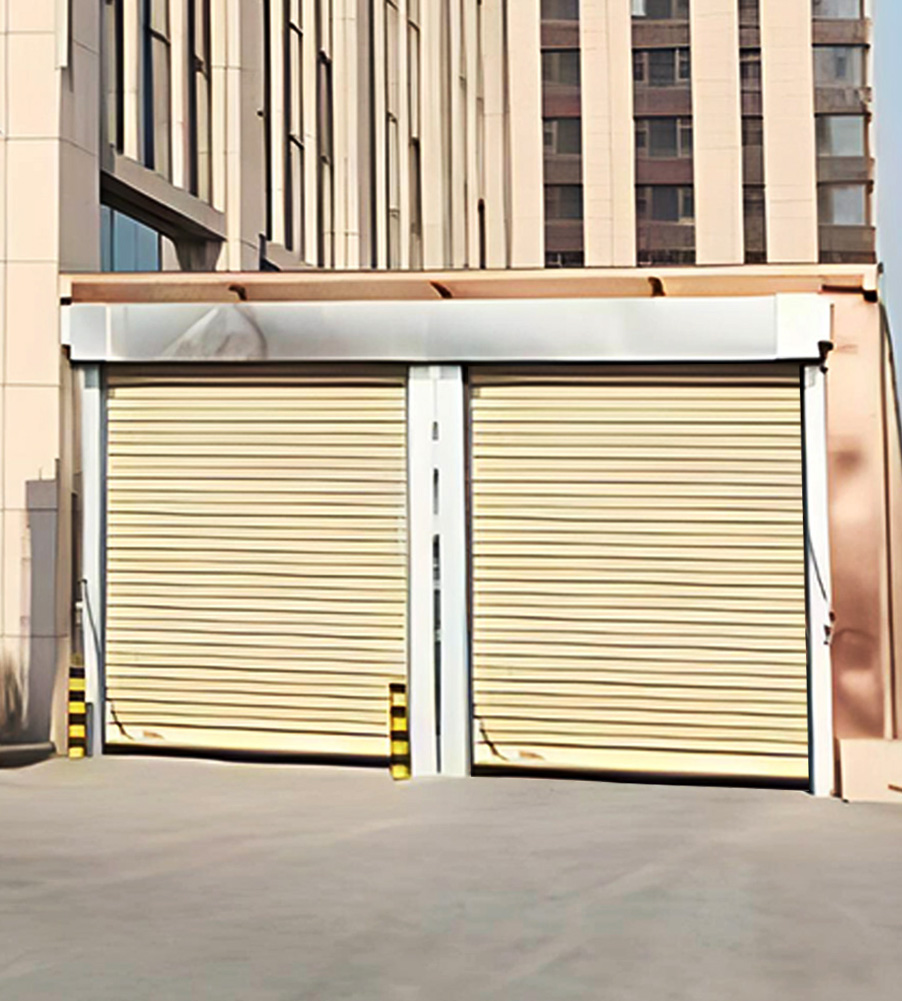

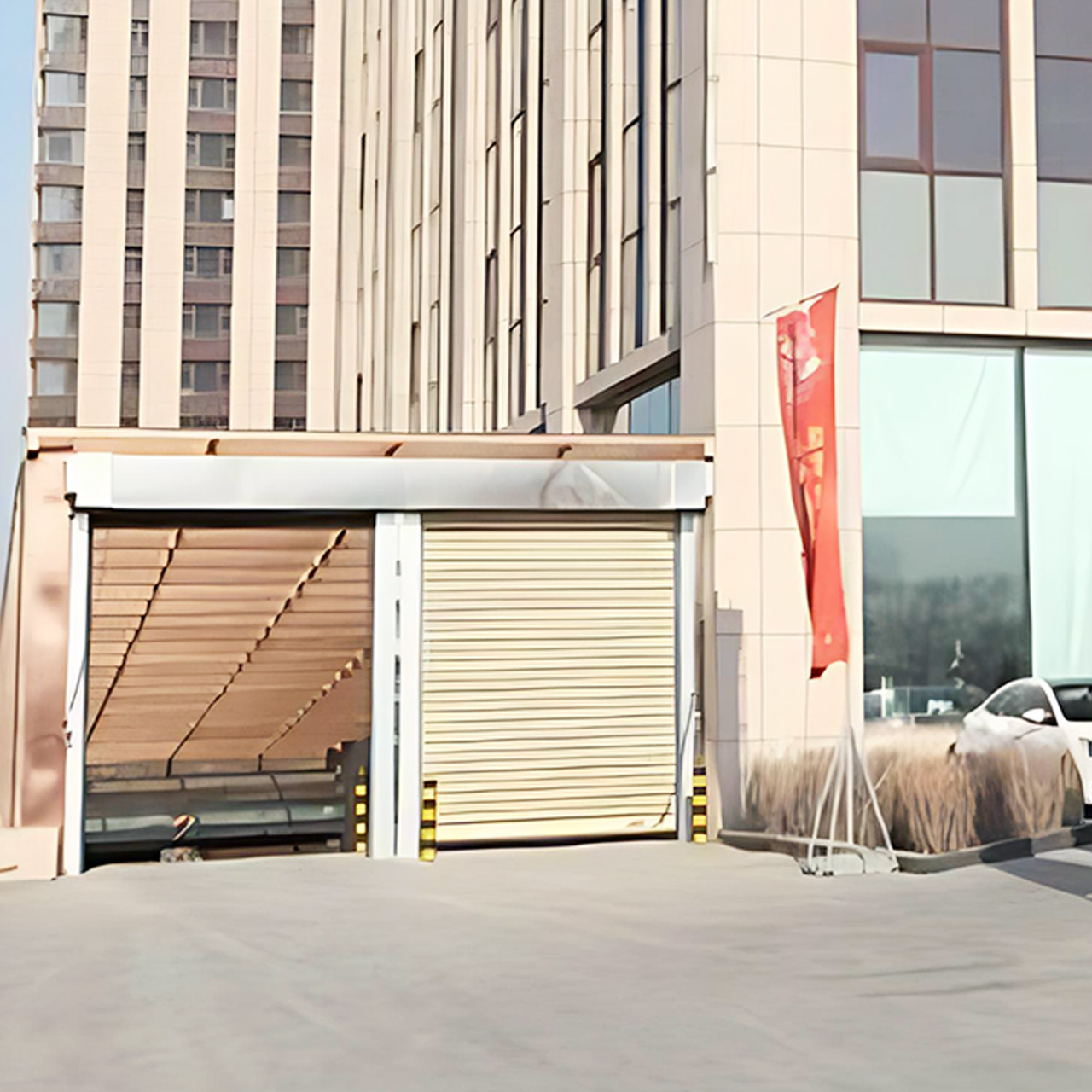

Parking Facilities
Underground Parking Garage Access Solution

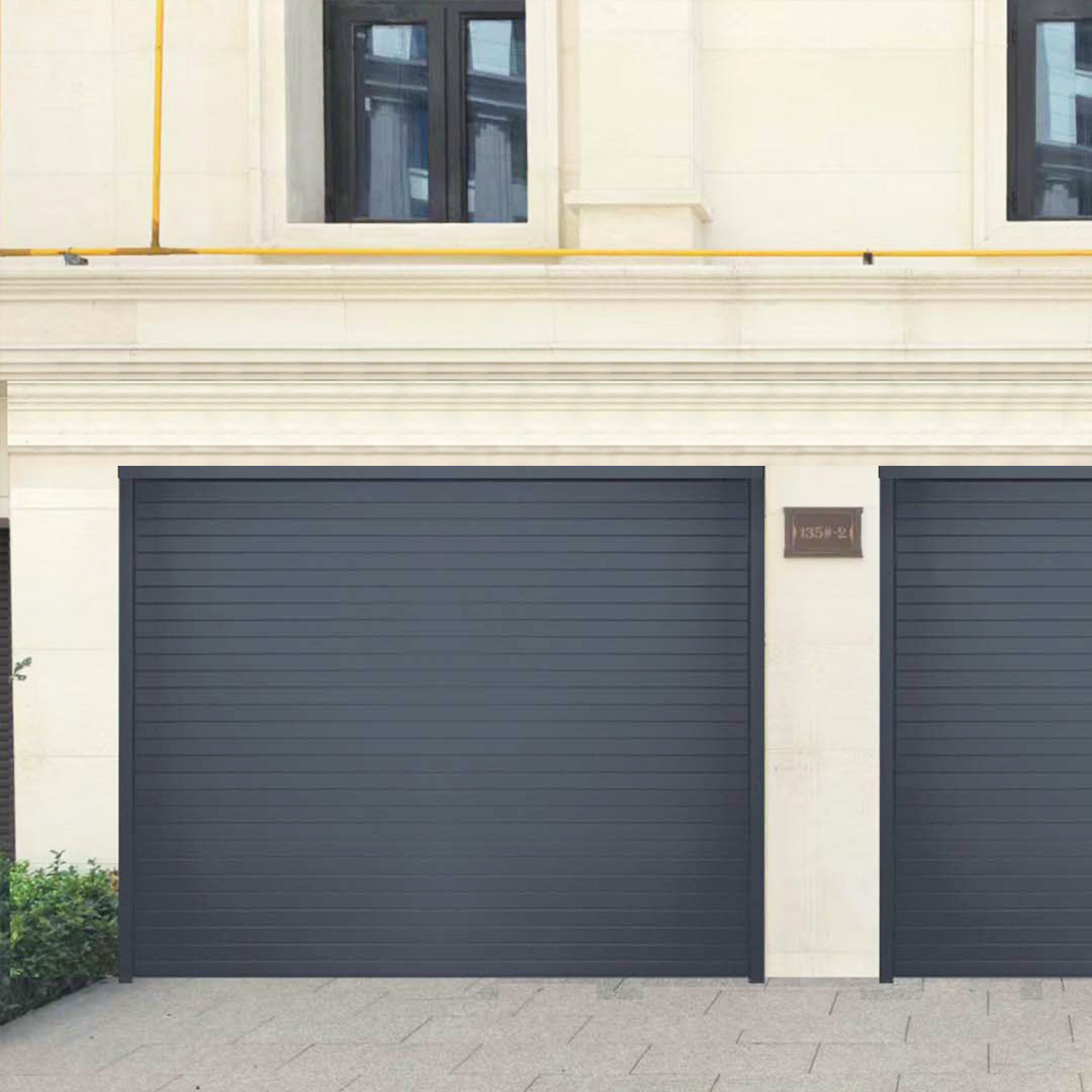

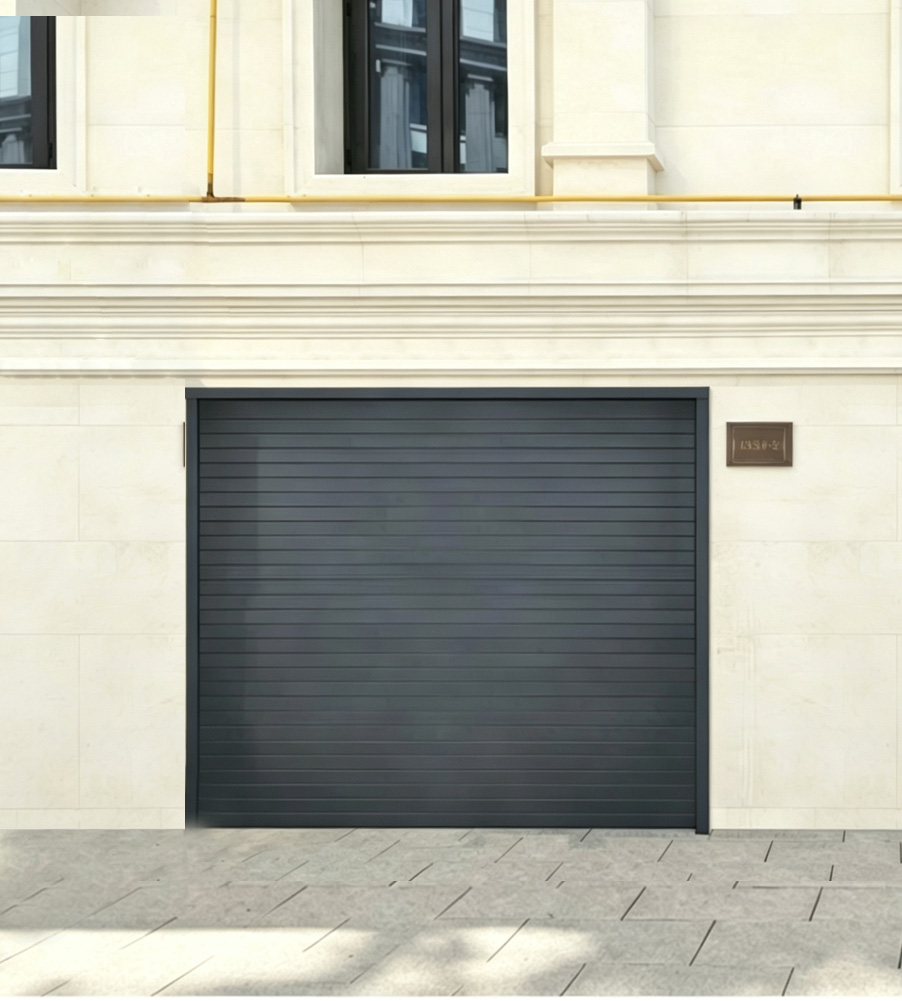

Garage Door
For Commercial Complexes, Office Buildings, Residential Communities, and Hospitals

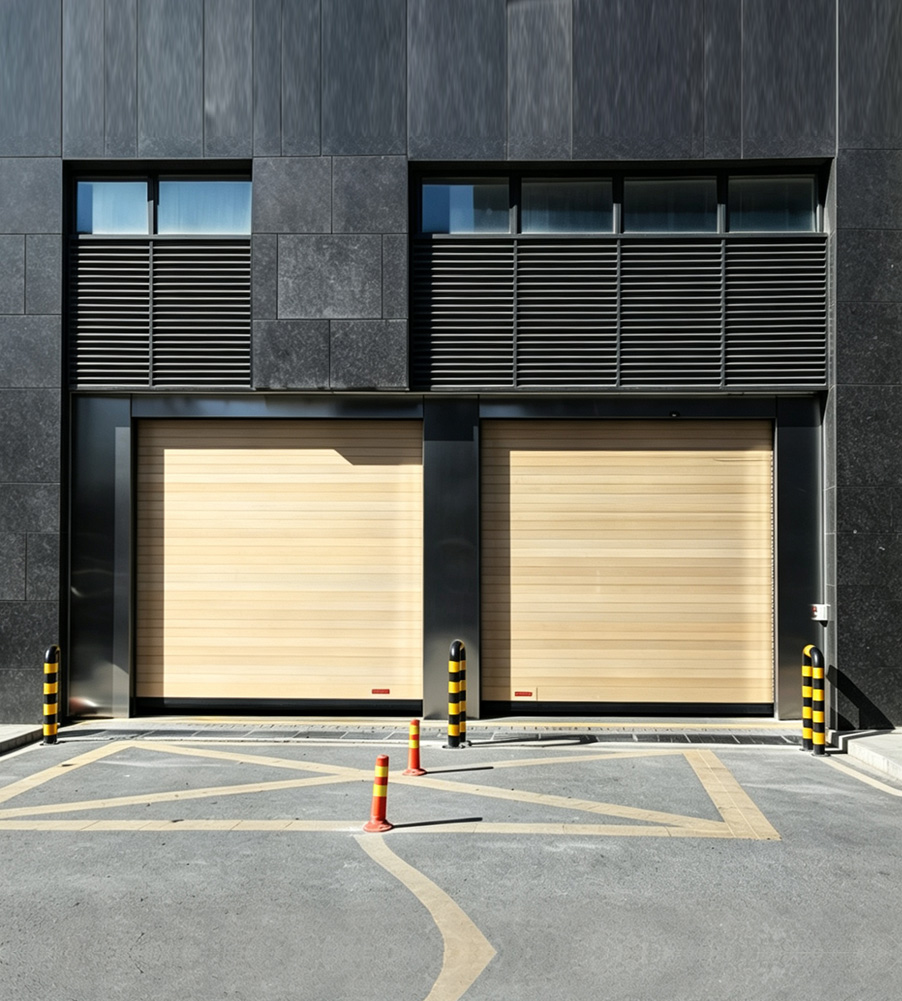

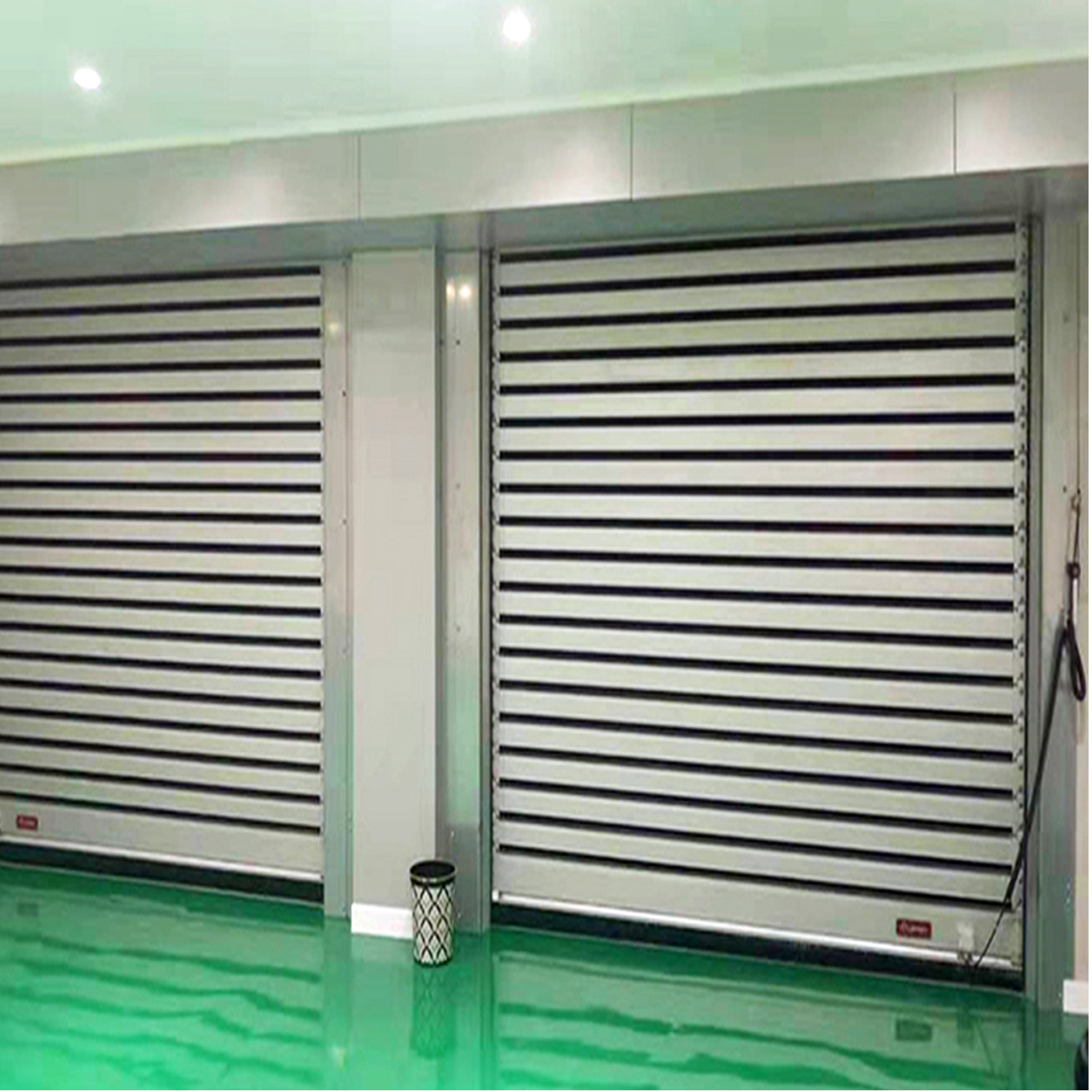

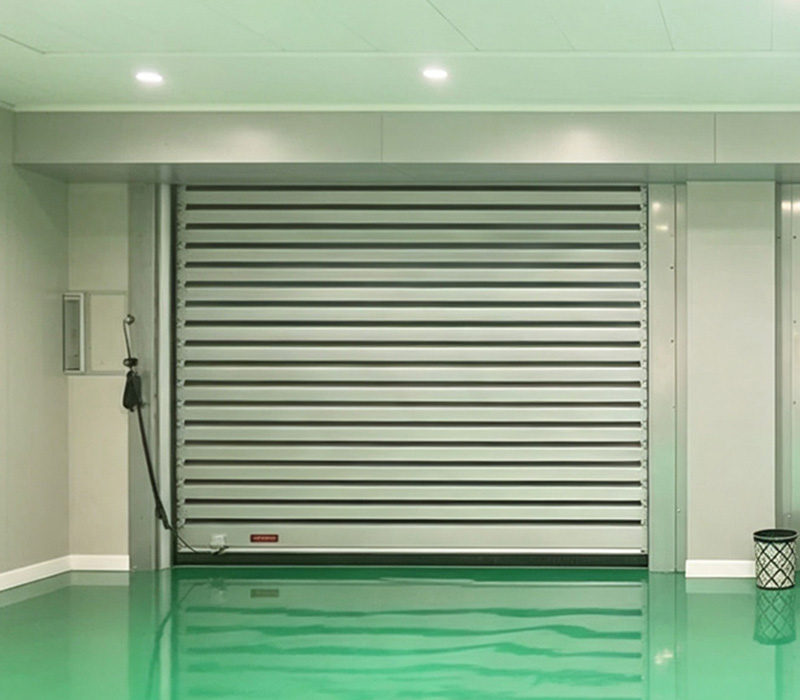

Underground Garage Door
Low-Headroom Access Solution

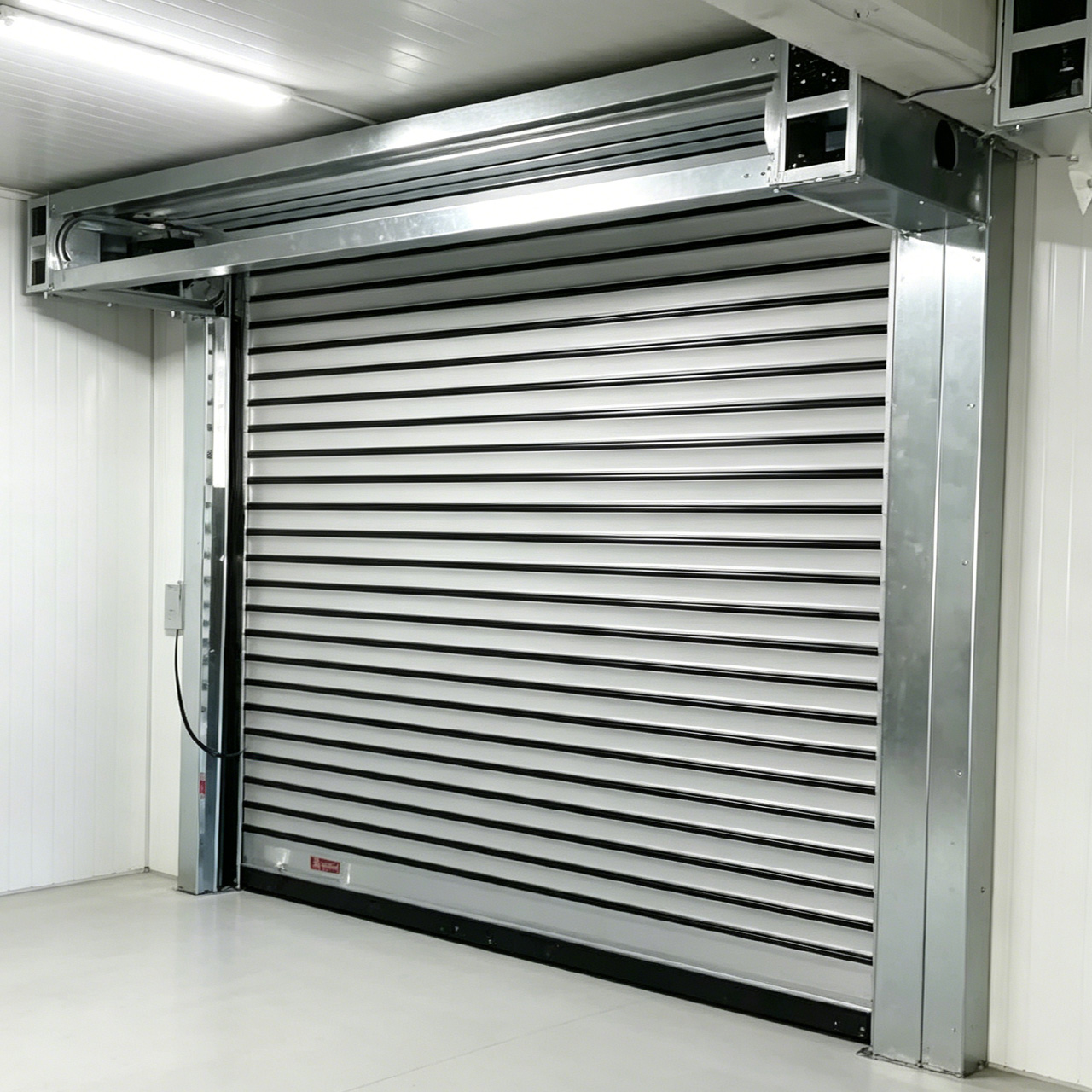

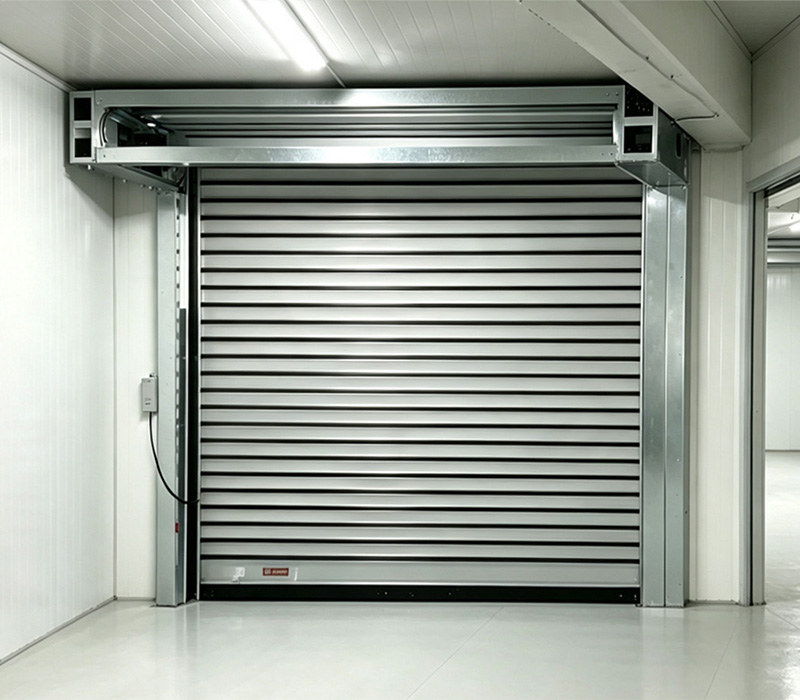

Material Warehouse
High Efficiency for Material Flow
Size
Maximum width: 6000mm, Area of door opening less than 20 square meters
Maximum width: 5000mm, Area of door opening less than 20 square meters
Control
Lefast servo motor and control system, Break release handle
Speed
Opening speed 0.6m/s-1.2m/s (adjustable); Closing Speed 0.6m/s (Adjustable)
Safety Devices
Standard: Photo eyes, Bottom Safety Airbag
Optional: Light Curtain
Optional Opening Methods
Radar, Loops detector, remote control, pull-cord switch, linkage, interlock, facial recognition, fingerprint recognition, license plate recognition
Commercial Garage Case Study
View the product video for a closer look at the door design, key components, and real application details.
| Color | Beige, Black, Blue, Brown, Yellow |
|---|
