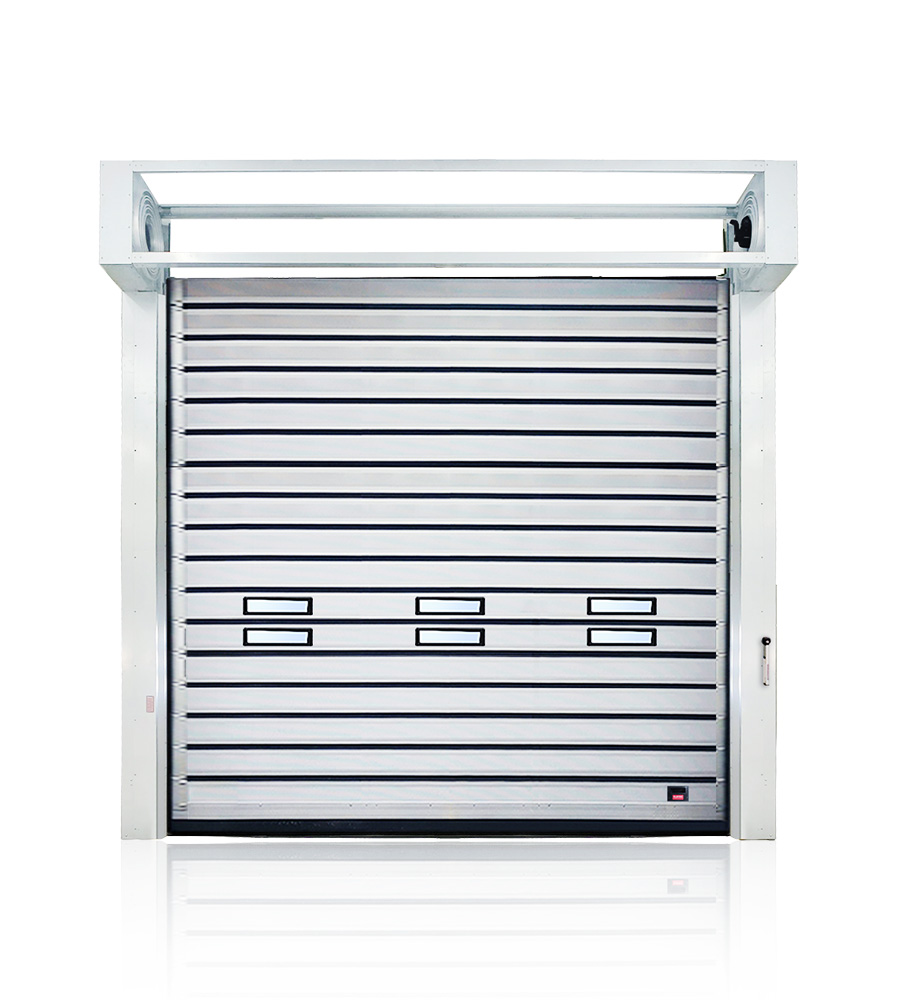

HSD6022
Large-Opening Spiral Door
Efficient access for larger industrial openings.
Designed for openings up to 8 meters wide, HSD6022 combines stable high-speed operation, thermal insulation and wind resistance in a cost-efficient solution for production, warehouse and logistics facilities.
- Up to 8 m Wide
- Cost-Efficient Design
- Reliable Daily Operation
Large Opening Design
Thermol Insulation
High-Speed Operation
Industrial Reliability
Panel Specifications
Safety Protection System
Need the Right Door for Your Project?
Get professional selection support based on your opening size, wind load, environment, and project requirements.
- ✓ Opening Size
- ✓ Application Environment
- ✓ Wind Load Requirement
| Model | Max Width | Opening Speed Up to | Best For |
|---|---|---|---|
| HSD23116 | 6000 mm | 2.0 m/s | General Industrial Access Budget-Sensitive Projects |
| HSD27150 | 4000 mm | 2.0 m/s | General Industrial Access Budget-Sensitive Projects |
| HSD4322 | 6000 mm | 2.5 m/s | Manufacturing Facilities Fire & Rescue Facilities |
| HSD4322Q | 12000 mm | 1.5 m/s | Wind-Exposed Areas Outdoor Applications |
| HSD6022 | 8000 mm | 2.0 m/s | Larger Traffic Routes Facilities Requiring Wider Access |
| HSD8022 | 10000 mm | 1.8 m/s | Large Industrial Access Points High-Traffic Facilities |
| HSD10022 | 12000 mm | 1.5 m/s | Oversized Access Points Facilities Requiring Enhanced Structural Stability |
Related Projects
Real projects. Reliable performance. Proven results.

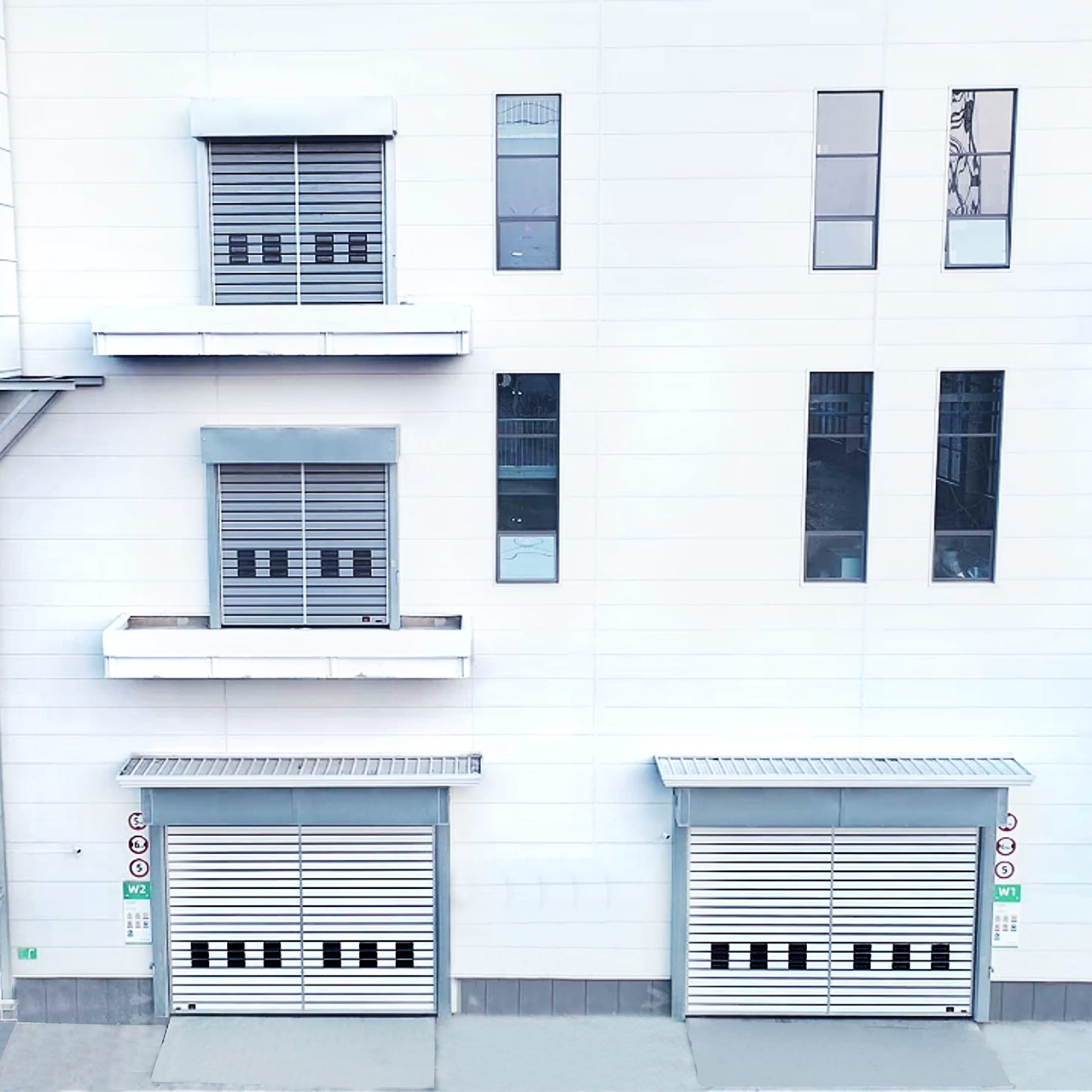

Huashijie Group
Clean Manufacturing Facility Access System

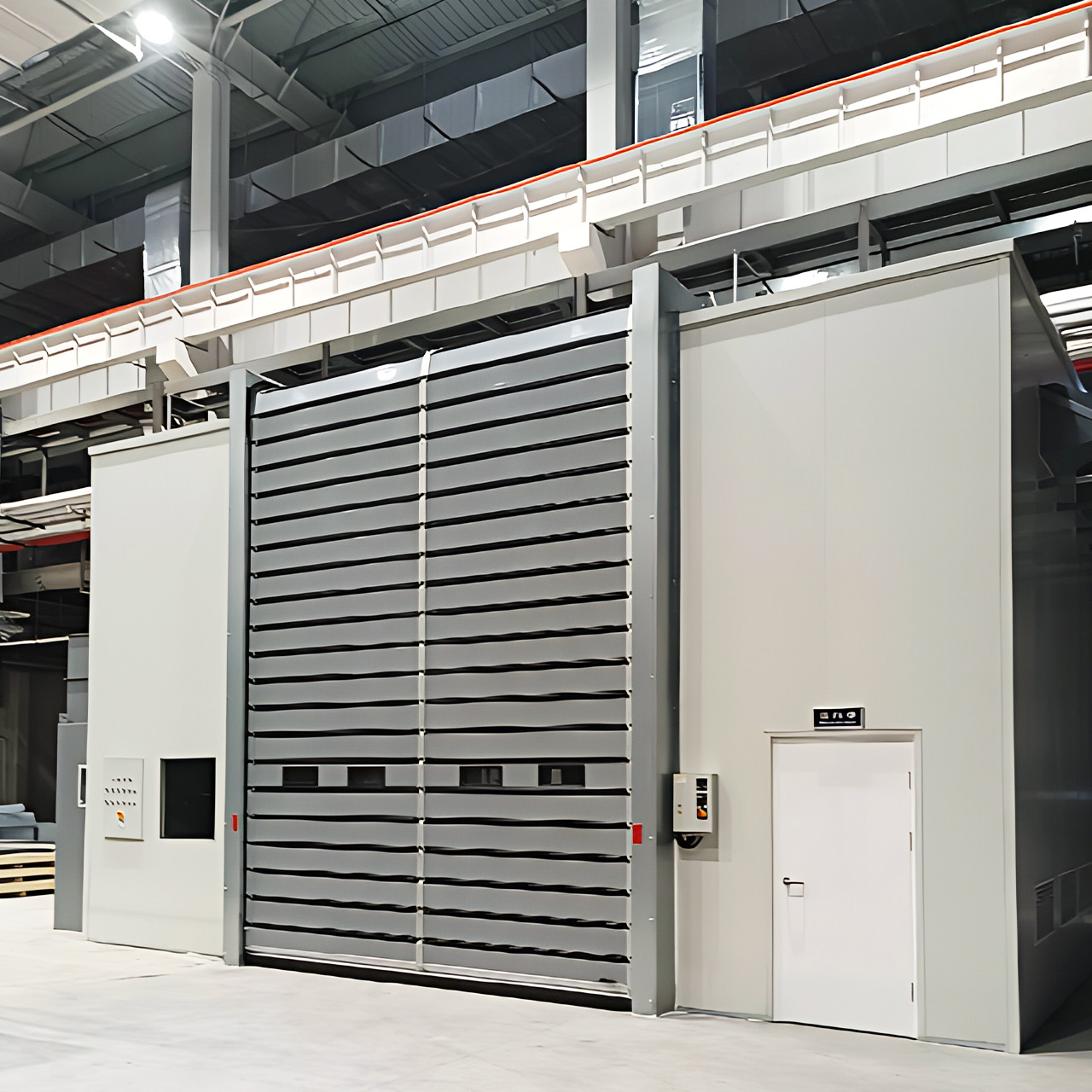

L-Shaped Spiral Track
Equipment Access and Maintenance Solution

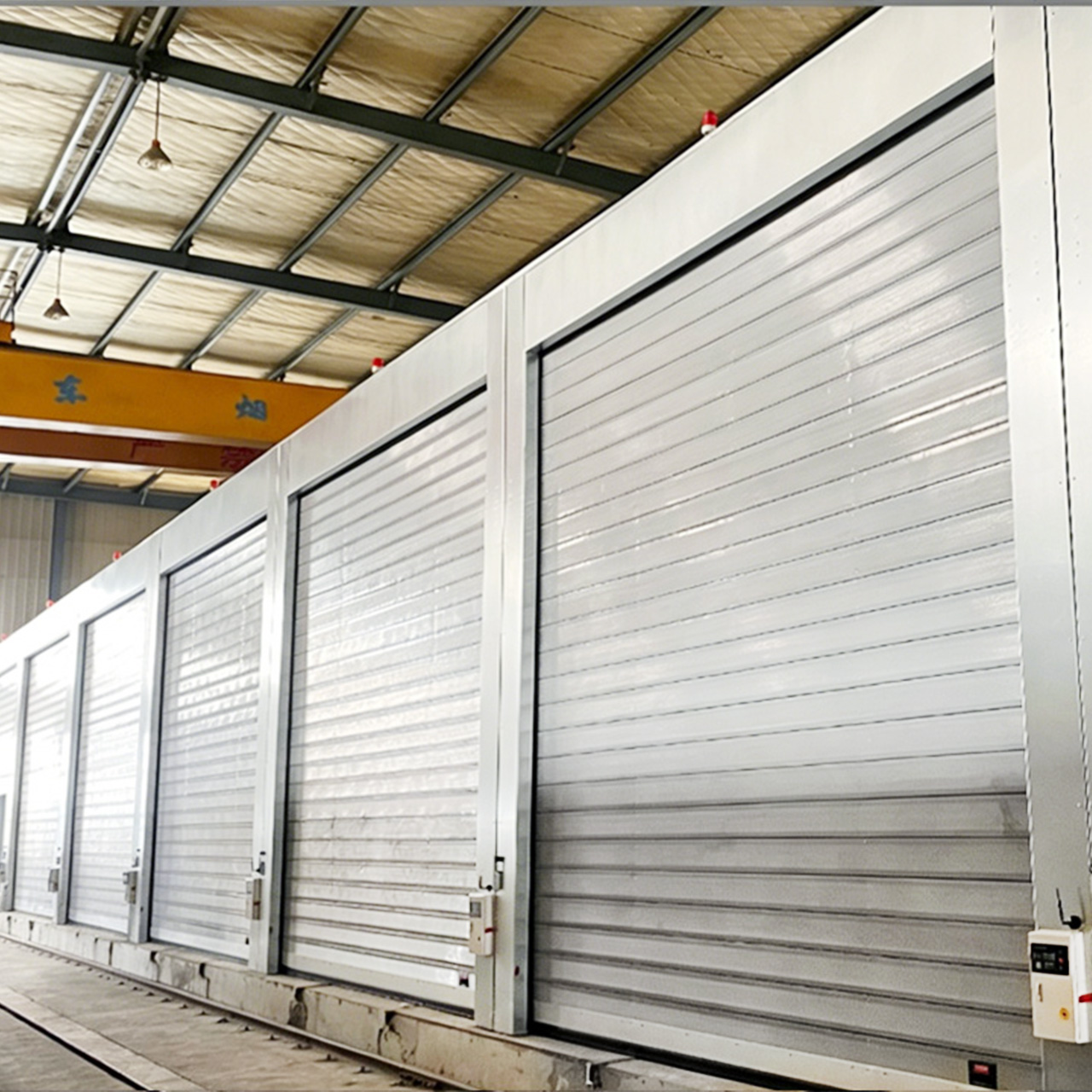

Cable Factory
Space-Efficient Drying Room Access

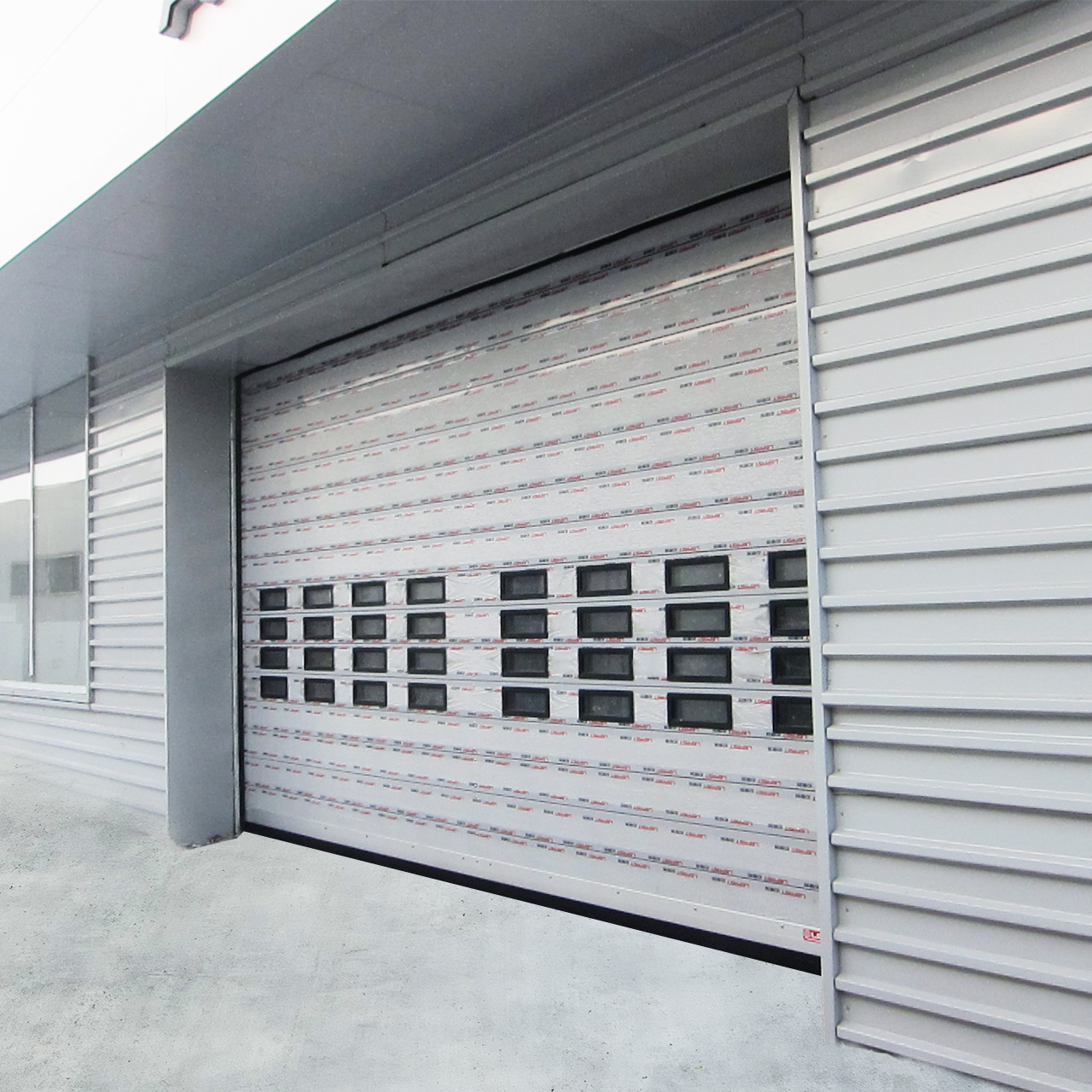

Automotive Dealer Shop
For Showrooms, Service Workshops, and Maintenance Bays
Size
6022：W=3000mm~8000mm，H=2300mm~7500mm
Speed
Opening speed 0.8m/s~2.1m/s acoording to door size Adjustable
Wind Resistance
GB level 3 Relative defiection under 0.5kp wind load <L/180)
Resistance Against Water Ingress
GB level 6
Air Impermeability
GB level 8
Insulation
GB level 3
Operation Testing
Thousands of times one day
Optional Opening Methods
Photo eyes, Light curtain, remote control, induction loop, radar, facial recognition.

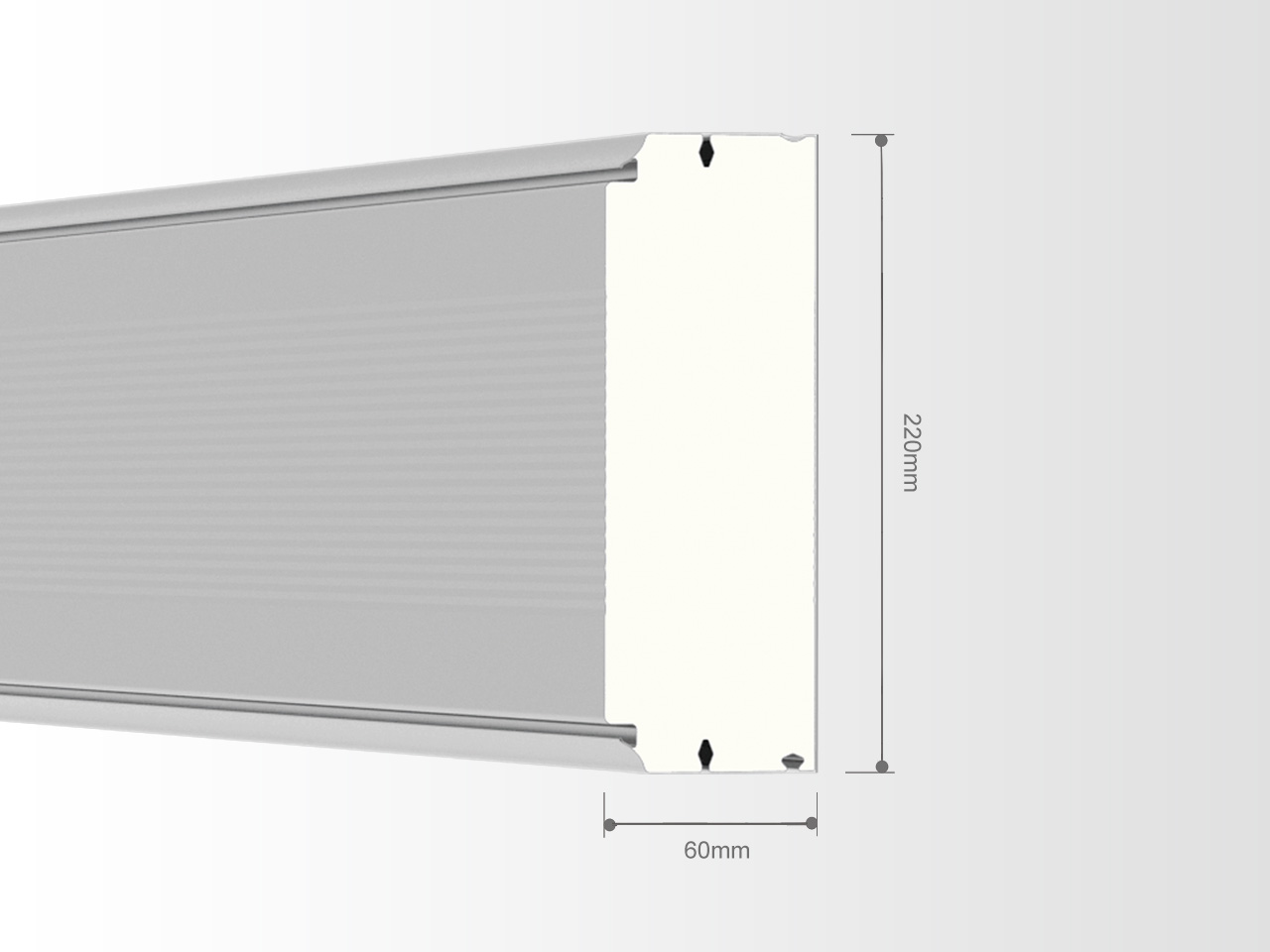

Door Panel Material
Thickness 60mm,Height 220mm. Made of double-walled stretched aluminum plates with one-off composited. The middle is filled with flame-retardant heat-insulating polyurethane and treated with high-pressure foaming.

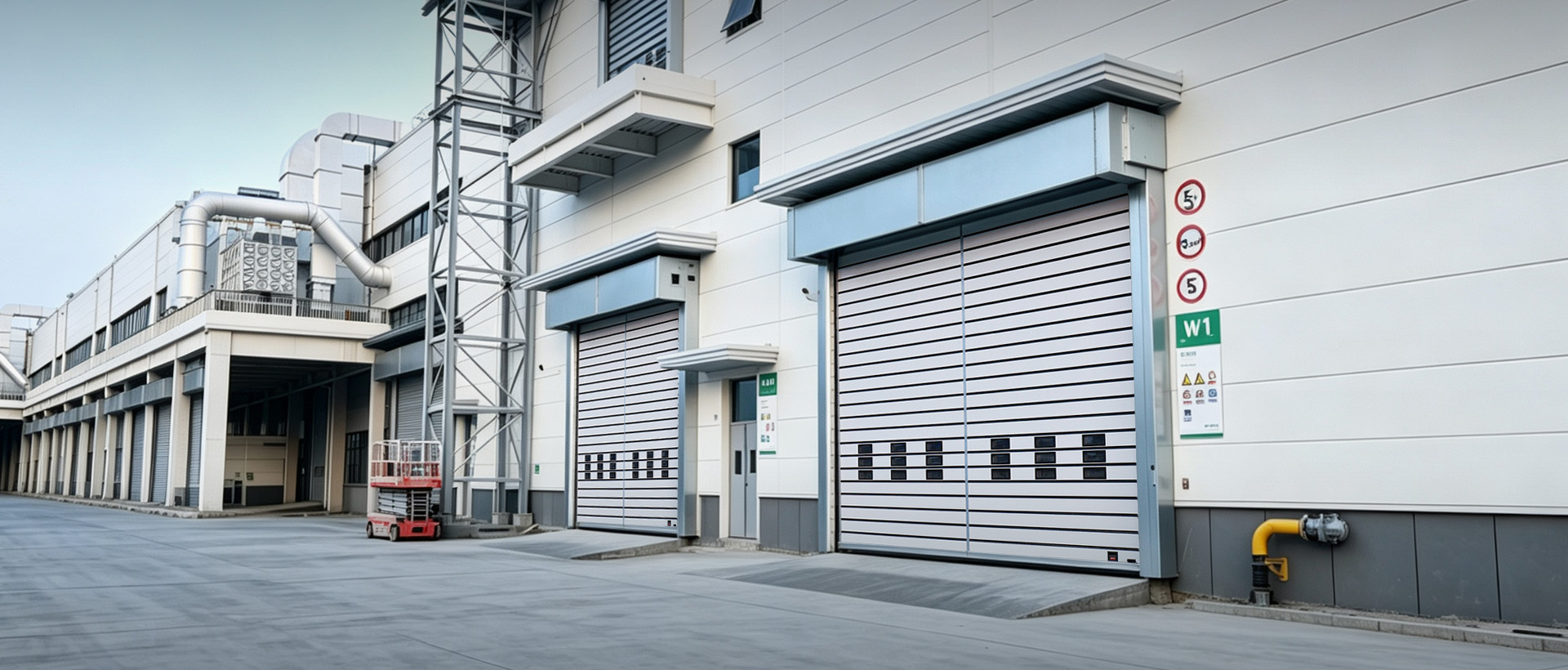

Factory Exterior Door Case Study
View the product video for a closer look at the door design, key components, and real application details.
| Color | Beige, Black, Blue, Brown, Yellow |
|---|
