High-Speed Doors for Cleanrooms: Sealing, Hygiene & Selection Guide

Introduction

Cleanrooms require controlled air, stable pressure, low particle levels, and strict hygiene, while personnel and materials may still need to move through them frequently.

High-speed doors for cleanrooms help reduce air leakage and exposure time, support efficient traffic flow, and maintain separation between controlled areas.

For the cleanroom projects, we should take a consideration on sealing, hygiene, operating frequency, cleanliness requirements, and the working environment.

1. What Is a High-Speed Door for Cleanrooms?

A high-speed door for cleanrooms is an automatically operated door designed for frequent traffic in controlled environments. With an opening speed ≥ 0.6 m/s, it opens and closes quickly to reduce the time of opening exposed.

Compared with conventional industrial doors, cleanroom high speed industrial doors put greater emphasis on sealing, hygiene, material selection, and frequent operation.

Rapid operation helps people , materials and equipment move efficiently while reducing unnecessary exposure between controlled areas.

2. Why Are Sealing and Hygiene Important for Cleanroom Doors?

A cleanroom door is part of the boundary between controlled and less-controlled areas. Its sealing and operation can affect how well boundary is maintained during daily traffic.

Limiting Uncontrolled Air Exchange

When a door opens, air can move between two areas with different conditions. Fast opening and closing reduces the time of opening exposed, while good sealing helps limit unnecessary air movement when the door is closed.

Supporting Pressure Control

Cleanrooms may operate under positive or negative pressure depending on the process. Frequent door openings can result in different pressure , while fast closing and effective sealing can help reduce unnecessary pressure disturbance.

Reducing Dust and Particle Entry

A door between a clean area and a less-controlled area can produce dust and particles to move through, especially when traffic is frequent. Short opening times and good sealing help reduce this exchange.

Supporting Cleaning and Hygiene Procedures

Material selection and construction of cleanroom doors matter as much as sealing performance. Materials should be suitable for clean environments and should not become a source of dust or contamination through normal operation, wear, or aging.The door should also be easy to clean and maintain.

3. Where Are High-Speed Doors Used in Cleanroom Environments?

Cleanroom Production Areas

At entrances and internal passages within clean production areas.

Personnel Access Areas

At personnel entrances, exits, and transition areas, including changing and shower rooms.

Material and Equipment Transfer Areas

Used for moving materials, carts, pallets, and equipment between cleanrooms and adjacent areas.

Connections Between Different Controlled Areas

Between areas with different environmental control requirements.

Packaging and Supporting Areas

Used between production areas and packaging, storage, or supporting areas.

Cleaning and Washing Areas

Used at entrances and exits of personnel shower rooms and equipment or material cleaning areas.

4. Key Benefits of High-Speed Doors in Cleanrooms

Faster Opening and Closing

High speed doors typically open at around 0.6–1.5 m/s and close at 0.6–1.0 m/s, and higher speeds are available for different requirements and applications. Faster cycles reduce the time the opening exposed, help limit air, dust, and particle exchange.

Better Environmental Separation

Fast operation reduces exposure time, while effective sealing helps maintain separation when the door is closed. Thus the doors for cleanrooms support better control between clean and adjacent areas.

Improved Workflow Efficiency

Fast response and stable operation make high-speed doors suitable for frequent personnel and material traffic, reducing waiting time at busy access points.

Automatic and Controlled Access

Depending on the application, doors can be activated by radar, fingerprint, password, facial recognition, remote control, or other access-control systems, reducing unnecessary manual operation.

Integrated Control and Interlocking

High speed doors can be linked with AGVs, production equipment, or other doors. Interlocking and adjustable closing delays can help coordinate traffic and door operation.

5. What Features Should a Cleanroom High-Speed Door Have?

A high-speed door for a cleanroom should be configured based on the application and environment requirement and how to use. Key features may include:

Effective Sealing

Good sealing should cover the door as a whole, including the curtain or panel, sides, and EPDM bottom. For insulated doors, sealing between adjacent panels also matters. A well-designed sealing system helps maintain separation when the door is closed.

Cleanable and Suitable Materials

Materials should match the hygiene and environmental requirements, but also remain stable during long-term operation without becoming a source of unwanted odor, dust, particles, or debris.

Stainless steel may be required in some cleanroom applications for hygiene or corrosion resistance.

Speed and High-Frequency Operation

Typical high speed door opening speeds are around 0.6–1.5 m/s,, some speeds up to 2.5m/s, and closing speeds are 0.6–1.2 m/s, If a door of opening H3m can be fully opened within 2-5s, then fully closed in 3-5s , epending on the selected setting, this means higher efficiency.

More important, the door should maintain safe and stable performance through dozens or even hundreds of cycles per day.

Suitable Curtain or Panel Design and Manufacturing

The door structure and manufacturing quality directly affect long-term performance. Curtain welding or panel connections, and other structural details should be designed and manufactured to withstand repeated operation without loosening, opening, or affecting normal use.

Safety Systems

Depending on the door type and application, safety protection may include photocells, safety edges, or light curtains.

Control and Activation Options

The door should support the control method required by the application, such as radar, access control, external equipment signals, interlocking, or closing-delay settings.

6. High-Speed Cleanroom Doors vs. Conventional Industrial Doors

Shorter opening cycles combined with effective sealing can help limit unnecessary air exchange between controlled and adjacent areas. Similar requirements are also common in logistics facilities where high speed warehouse doors support frequent traffic flow.

Which to choose depends on environmental control, sealing, hygiene, traffic frequency, and automation needs—not speed alone.

7.How to Choose a High-Speed Door for a Cleanroom

Define the Application and Traffic

First to know where the door will be used and what will pass through it—personnel, carts, pallets, forklifts, materials, equipment, or automated systems. Consider the expected daily traffic frequency as well.

Check Door Size and Environmental Conditions

Confirm the opening width × height , consider temperature, humidity, dust, corrosion, and other site conditions that may affect the door selection.

Determine Sealing and Environmental Control Requirements

Consider requirements, including cleanliness level, pressure difference, airflow, and separation between adjacent areas. Different cleanroom applications may require different levels of sealing.

Select Materials, Activation and Safety Systems

Select the curtain or panel, frame material, activation method, and safety system according to the environment, cleaning requirements, traffic pattern, and operating conditions.

Check Control and Integration Requirements

Confirm whether the door needs to work with access control, interlocking, AGVs, production equipment, or other external signals, and make sure the selected door supports the required functions.

Cleanroom Door Selection Checklist

Create a practical checklist:

• Application and traffic type

• Opening width × height

• Traffic frequency

• Cleanliness and sealing requirements

• Temperature, humidity and site conditions

• Curtain/panel and frame material

• Activation and safety requirements

• Access control, interlocking and integration requirements

8. How to Choose the Right LEFAST High-Speed Door for Your Cleanroom

Choosing a high speed door for cleanroom , you can start with the application, traffic, opening size, environmental conditions, sealing requirements, and installation space.

HSR for Common Cleanroom Applications

HSR is often the most widely used in cleanroom projects. It is commonly used for personnel and material access where practical sealing, fast operation, and cost are important.

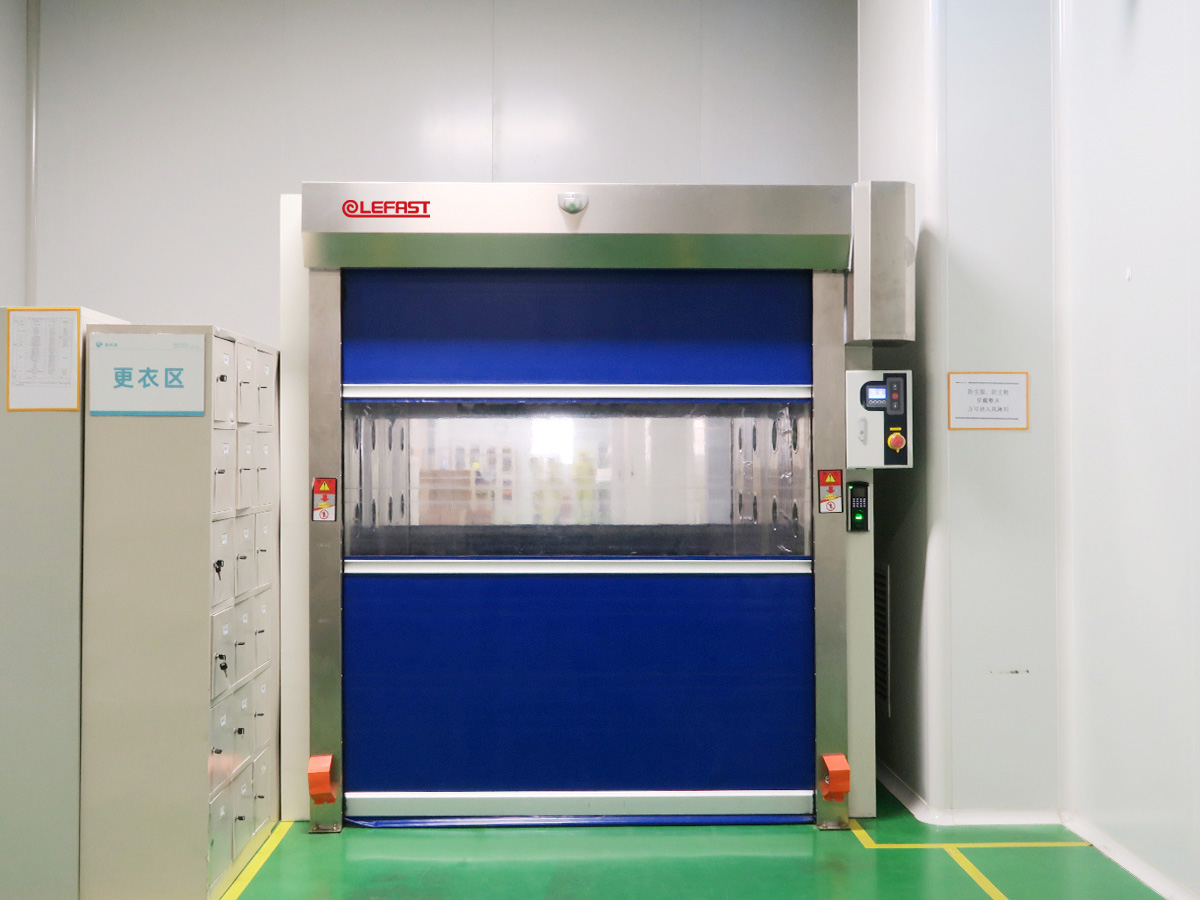

In a battery film material facility, an HSR of about 2.4 × 2.5 m is used at a personnel shower area. The two doors are interlocked. Outside the shower room, personnel use fingerprint access to open the door, and the closing delay is set to 5 seconds according to the operator’s requirements.

HSR has also been used in daily chemical products, food and pharmaceutical processing, electrical and electronic manufacturing, and new energy material production, covering personnel passages, clean production areas, and material transfer points.

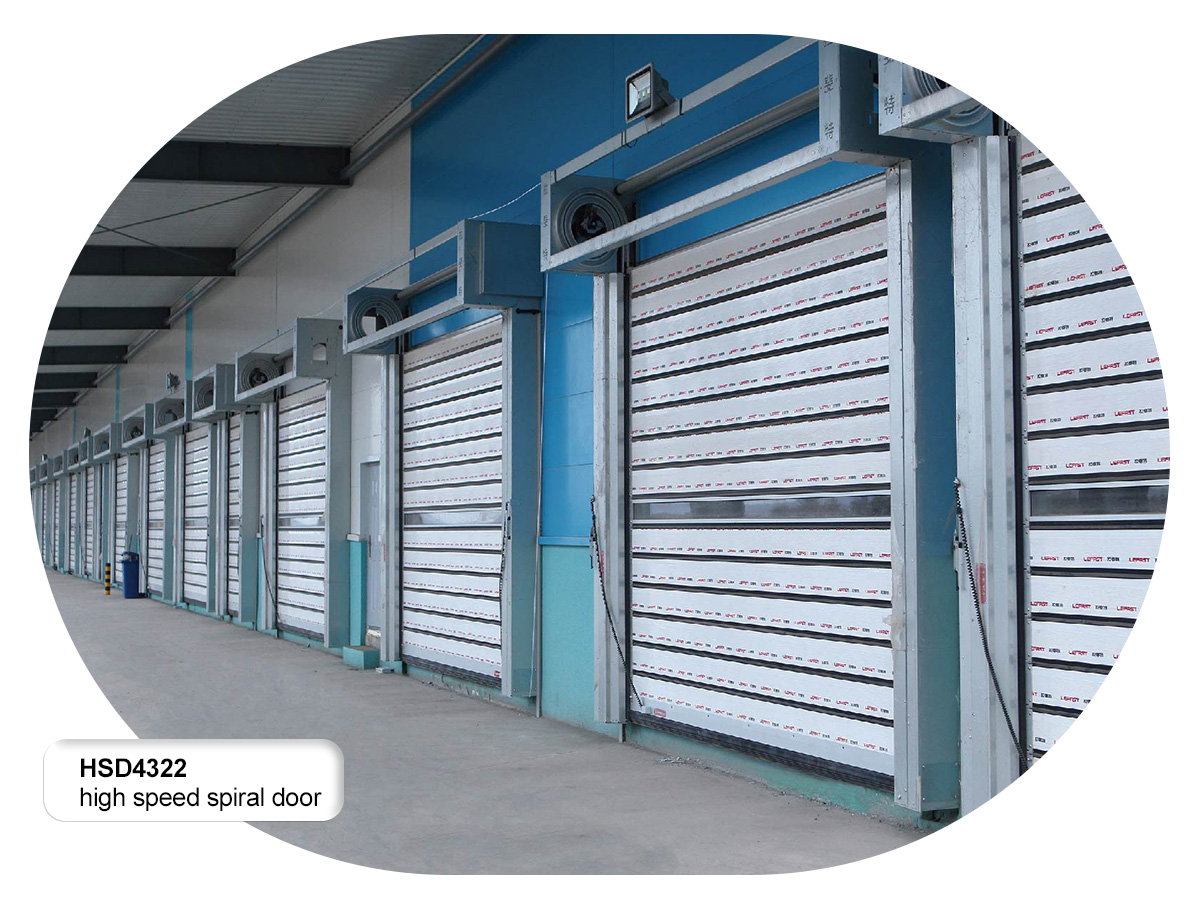

HSD4322 for Higher Sealing Requirements

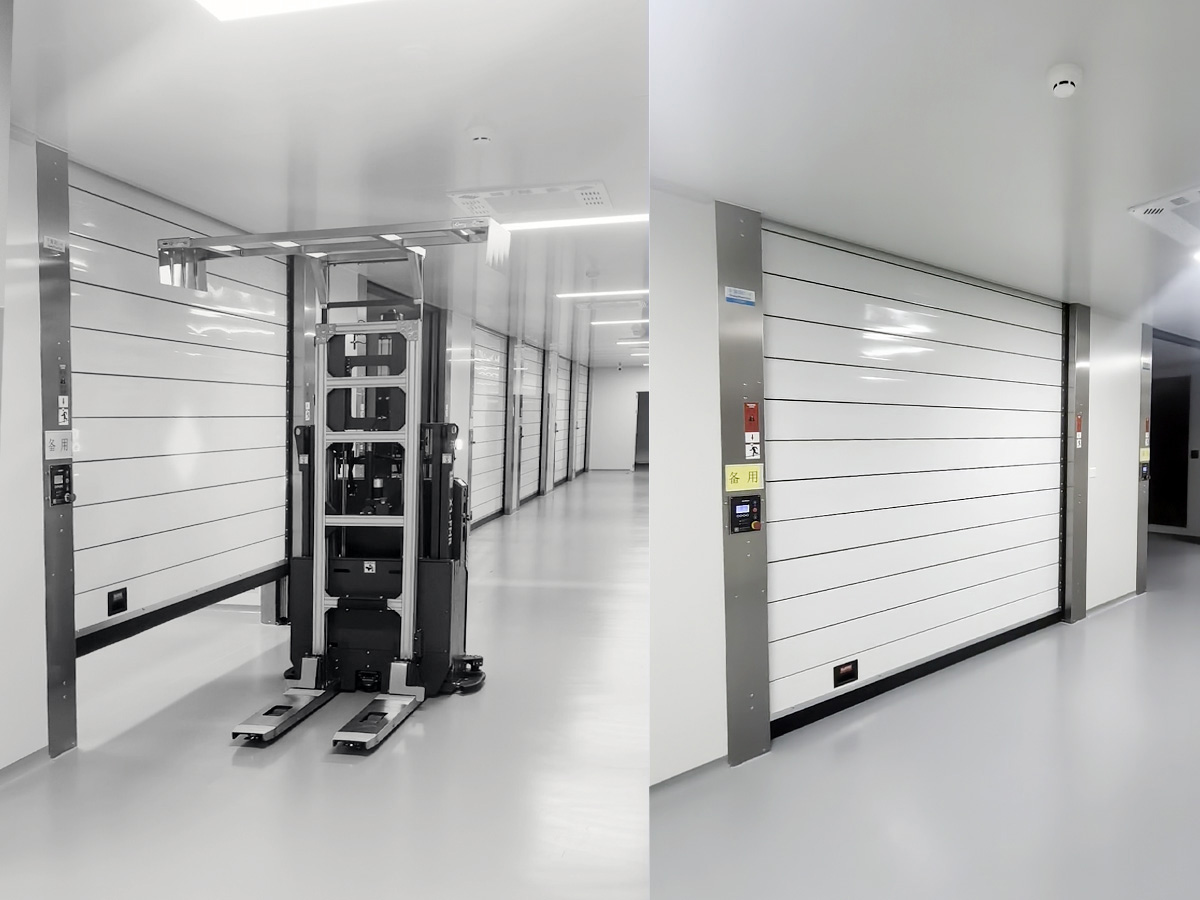

In a vitamin C production facility, an HSD4322 of around 3 m is used for an AGV access point. The surrounding area is relatively dusty, so sealing was a key requirement.

HSD4322 provides sealing on both sides of the panels, the sides, bottom, and top. Stainless steel was used for the frame and head cover to suit the site environment.

Other LEFAST Options

• RSD: Ball-driven self-repairing door
• RZD: Zipper-driven self-repairing door
• RCL: Compact frame for limited installation space
• HSD27150: insulated panel with comprehensive sealing

LEFAST Cleanroom High-Speed Door Comparison. LEFAST also provides high speed spiral doors for applications requiring fast and reliable access.

Stainless steel components are available where required.

All models can support automatic activation and external signal integration according to the application.

Planning a Cleanrooms Project, What information Should You Provide?

Before recommending a specific configuration, LEFAST normally looks at:

• Application and traffic type

• Opening width × height

• Cleanliness and sealing requirements

• Pressure conditions

• Temperature, humidity and site conditions

• Curtain/panel and frame material requirements

• Activation and safety requirements

• Access control, interlocking and automation requirements

Share these details with LEFAST, and we can recommend a suitable door configuration for your project.

9. Frequently Asked Questions

What type of high-speed door is suitable for a cleanroom?

HSR is a practical choice for many standard cleanroom applications. RSD, RZD, and RCL provide other curtain and structural options, while HSD is suitable for stronger sealing or insulated panels are required.

Can a High-Speed Door Be Used in Every Cleanroom?

No. The door should match the required cleanliness, sealing, pressure, temperature, humidity, and site conditions. Higher airtightness requirements may call for a hermetic door.

How Does a High-Speed Door Help Reduce Dust and Air Exchange?

Fast opening and closing reduces the time the doorway is exposed. Proper sealing further limits air and particle exchange.

Can High-Speed Cleanroom Doors Be Interlocked or Linked to Other Equipment?

Yes. They can be configured for door interlocking, access control, AGV linkage, and other external signals.

What Materials Should Be Considered for a Cleanroom High-Speed Door?

Consider the curtain or panel, frame, seals, and exposed components based on hygiene, cleaning, and corrosion requirements.

How Can LEFAST Help Choose a Cleanroom High-Speed Door?

LEFAST can recommend a suitable door configuration based on the application, opening size, traffic, sealing requirements, site conditions, and control requirements.

10.Conclusion

Choosing a high-speed door for cleanrooms depends on Opening size, traffic frequency, sealing, hygiene, requirements , more than opening speed should all be considered before selecting the door type.

If you are planning an access opening for an air-supported structure, share your opening dimensions, site conditions, and access requirements with LEFAST. Our team can help you evaluate a suitable door type and configuration, and provide a project-specific quotation.
