High-Speed Fabric Doors for Warehouses: Applications, Benefits & Selection Guide
Introduction
Warehouse doors can be opened and closed hundreds of times a day. Slow operation can interrupt forklift traffic, doors stay open too long can let dust, insects and unwanted air exchange in.
High speed fabric doors are designed for frequent warehouse traffic, opening and closing quickly to keep different areas separated and reduce the time an opening remains exposed.
In this guide, we look at where high speed warehouse doors are used, what benefits they offer, how they compare with traditional warehouse doors, and what to consider when you choose one.
1. What Is a High-Speed Fabric Door?
A high-speed fabric door is a door that uses a flexible fabric curtain with thickness of 0.8-1.8mm and operates at a speed above 0.6 m/s. It is designed for frequent opening and closing in busy traffic areas.
High-speed fabric doors can use different curtain and structural designs to meet different warehouse requirements. Common types include high speed rolling doors, high speed folding doors and high speed self-repairing doors.
2. Why Do Warehouses Use High-Speed Fabric Doors?
Faster Traffic Flow
Forklifts and workers may pass through the same opening many times a day. Faster opening and closing helps reduce waiting and keeps warehouse traffic moving.
Warehouse doors may be used dozens or even hundreds of times a day by forklifts and workers. At an opening speed of 0.15m/s for a H=3m door can open more than 2min. At 0.6 m/s, the same opening takes about 5s. At 1.0 m/s ,the same opening takes about 3s. The difference will be really faster for forklift and pedestrian traffic.
Better Separation Between Areas
Warehouses often need to separate storage areas from loading bays, storage areas, production areas, packing zones or other working zones. High speed doors can maintain this separation without slowing down regular access.
Less Dust and Insect Entry
A door that opens and closes quickly leaves less time for dust, insects and outside air to enter. This is especially useful for warehouses storing food, pharmaceuticals or other sensitive materials.
Reliable Operation for Frequent Use
The fabric materials and lightweight door structure reduces the load during operation, while servo motors provide fast response, smooth acceleration and accurate positioning. They support stable operation for high performance doors during frequent opening and closing.
Reduced Operational Disruption
If warehouse doors can be connected to sensors, vehicle detection systems and other control signals to open and close automatically, it will reduce manual operation and help coordinate door movement with forklift traffic, material handling equipment and automated warehouse systems.
3. Where Are High-Speed Fabric Doors Used in Warehouses?
Loading and Unloading Areas
Loading bays often have frequent forklift and vehicle traffic between indoor and outdoor areas. High speed doors need to handle repeated traffic while keeping the warehouse opening controlled.
Internal Warehouse and Production Connections
Openings between storage, packing and production areas are often used continuously, high speed warehouse doors provide a practical way to separate these areas without turning the doorway into a bottleneck.
Temperature-Controlled Areas
Openings between different temperature zones can cause unnecessary air exchange. High speed fabric doors help control these transitions, while dedicated cold storage doors are used suitable depending on the temperature and insulation requirements.
Logistics and Distribution Centers
Sorting, storage and dispatch areas often have continuous material flow. High speed fabric doors at these points need to support smoother movement.
4. High-Speed Fabric Doors vs. Traditional Warehouse Doors
| Factor | High-Speed Fabric Door | Roller Shutter Door | Sectional Door |
|---|---|---|---|
| Opening Speed | 0.6-1.5m/s | 0.1–0.25 m/s | 0.25–0.5 m/s |
| Closing Speed | 0.6-1.0m/s | 0.1–0.15 m/s | 0.15–0.2 m/s |
| Suitable Traffic Frequency | Up to 1,000 cycles per day | Lower-frequency | Moderate-frequency |
| Temperature Control | Depends on curtain and sealing | Limited to moderate | Insulation door panels |
| Safety Features | Infrared Safety edge (Optional) |
Generally no | Infrared |
| External Signal Integration | Yes | Limited / generally no | Depends on control system |
High-speed fabric doors, roller shutter doors and sectional doors can all be used in warehouses at different access points rather than relying on one solution for every opening. The best option depends on traffic frequency, security requirements, environmental conditions and installation location.
5. How to Choose a High-Speed Fabric Door for a Warehouse
Determine the Door Size and Installation Conditions
Start with the clear opening width and height to make sure the the vehicles can easily pass through. Available space above and beside the opening is also important. especially when replacing an existing door. For the openings, the door structure and installation conditions need closer evaluation.
Evaluate Traffic Frequency
Look at how often the door will actually be opened and closed each day. A high speed door is most useful at busy access points; if an opening is used fewer than 10 times a day, traffic frequency alone may not justify choosing one.
Check Wind and Environmental Conditions
Wind resistance should be part of the selection for outdoor or exposed openings, . Temperature, humidity, dust and cleanliness also matter. Refrigerated or controlled areas may require different curtain, sealing and insulation solutions from a standard warehouse.
Consider Assess Impact Risk
Consider whether forklifts, pallet trucks or other vehicles could hit the door during normal operation. Where accidental impact is likely, a self-repairing design can reduce downtime and avoid manually putting the curtain back into side column guides after a collision.
Choose the Right Activation Method and Safety Features
Activation method options may include radar sensors, pull cords, push buttons, remote controls, vehicle loop detectors or external control signals. For automated warehouses, system integration should be considered before installation.
Safety protection options may infrared, light curtain, safety airbag, radar with infra protection etc.
Consider Maintenance and Service
Explain why access to spare parts, technical support, and routine maintenance should be considered during selection.
Check maintenance processing and how quickly key components can be replaced. If the high speed doors manufacturers can provide technical support and service.
A Quick Selection and Practical Checklist :
- Opening width × height
- Application location and traffic type
- Traffic frequency and assess impact risk
- Environment requirements
- Automatic control and safety options
- External signal integration
6. How to Choose the Right LEFAST High-Speed Door for Your Warehouse
LEFAST serves as a high speed doors manufacture, offers several high speed warehouse doors for different warehouse applications. The choice mainly depends on traffic, opening size, impact risk and temperature requirements.
For General Warehouse Applications
For normal-temperature warehouses with regular forklift and pedestrian traffic, the HSR High Speed Rolling Door is a common choice. It’s called rapid roll doors in some other door manufactures, uses a flexible PVC curtain.

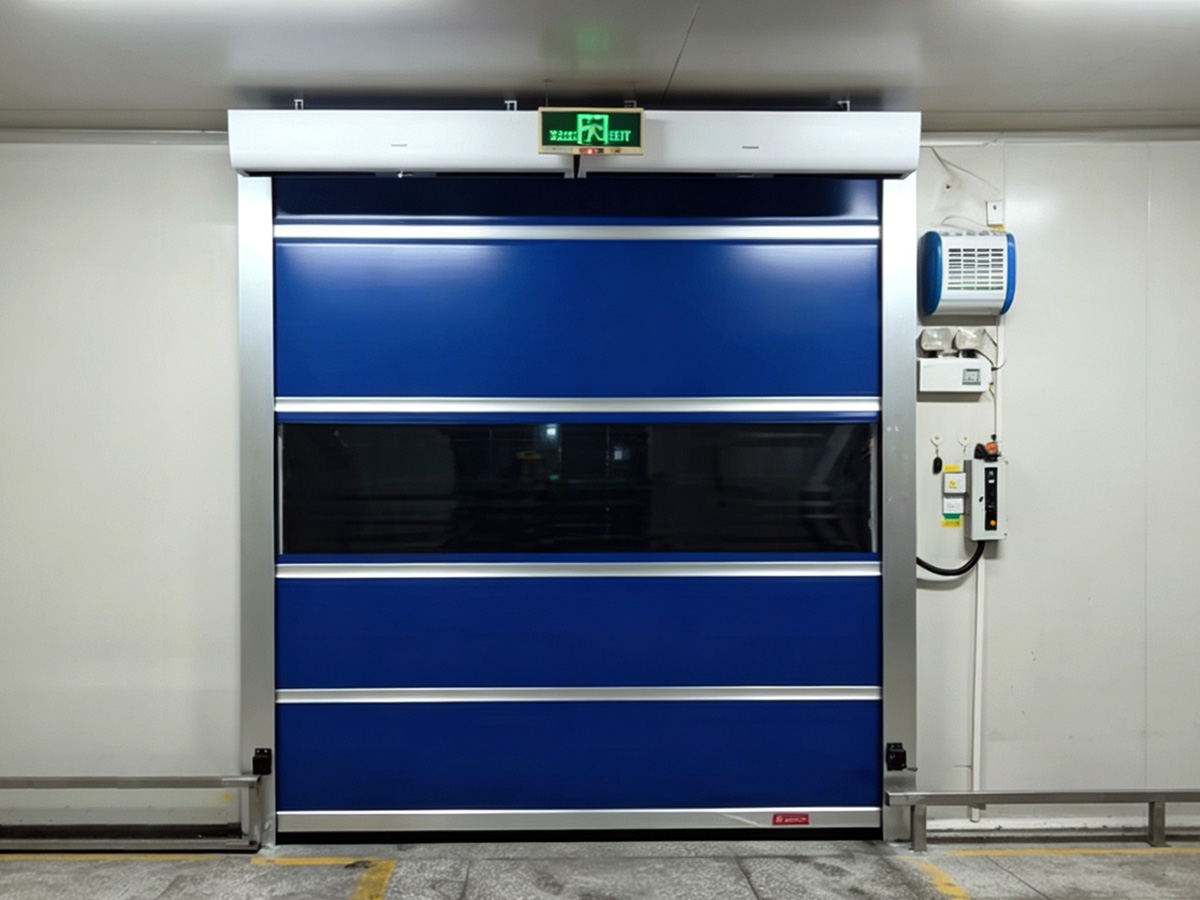

LEFAST HSR doors have been used in Haidilao’s material warehouse with opening W3000*H2500, Kunming Uni-President Food’s warehouse with integration with AGV, Yangtze River Pharmaceutical's warehouse with automation packing line and Shanghai Pharma's ambient warehouse.
For Larger or Wind-Exposed Openings

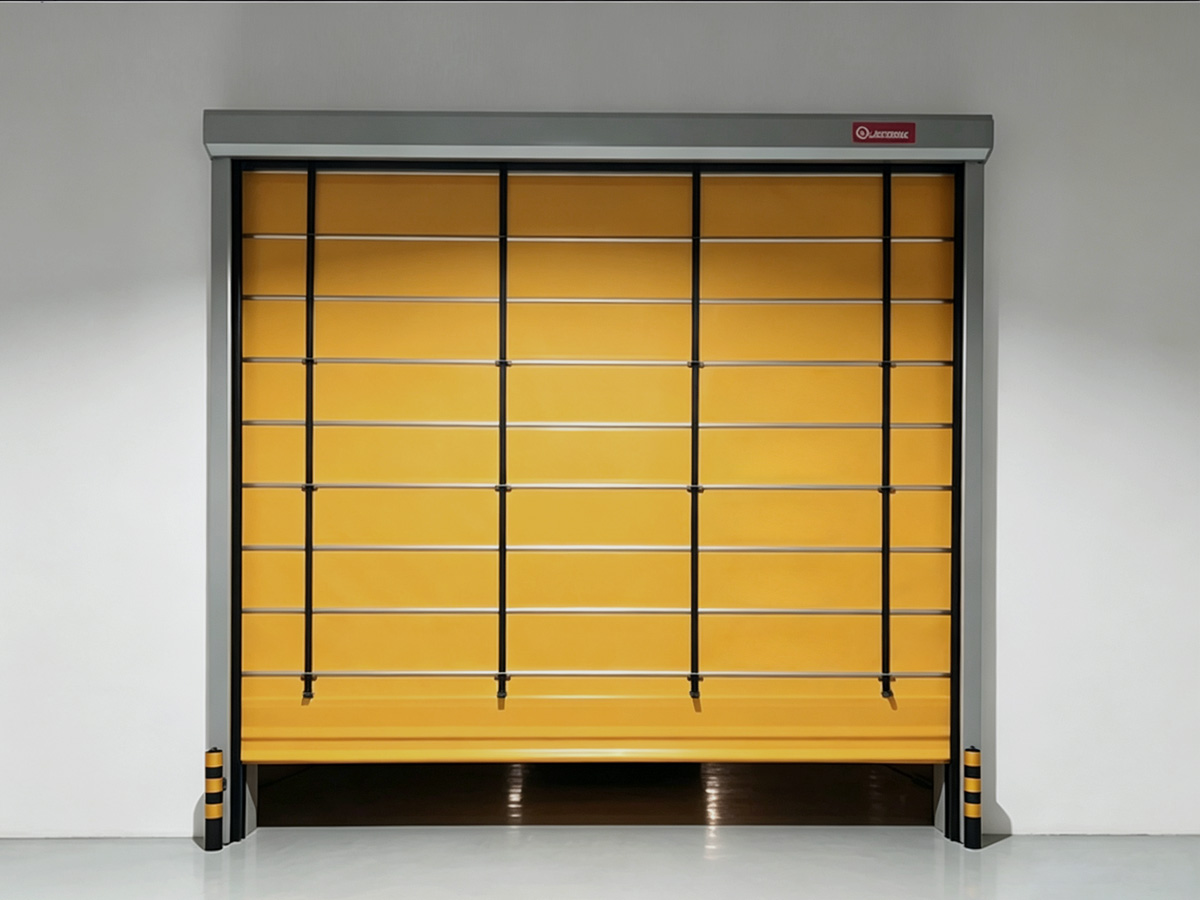

HPD High Speed Folding Door can provide a stronger curtain support structure for larger openings or areas with higher wind exposure.
In the Zhensheng Rubber warehouse with the opening W6500*H5000, there must be a traffic light shining when the door opens, The actual opening size, installation position and local wind conditions should be considered when selecting the configuration.
For Areas with Impact Risk

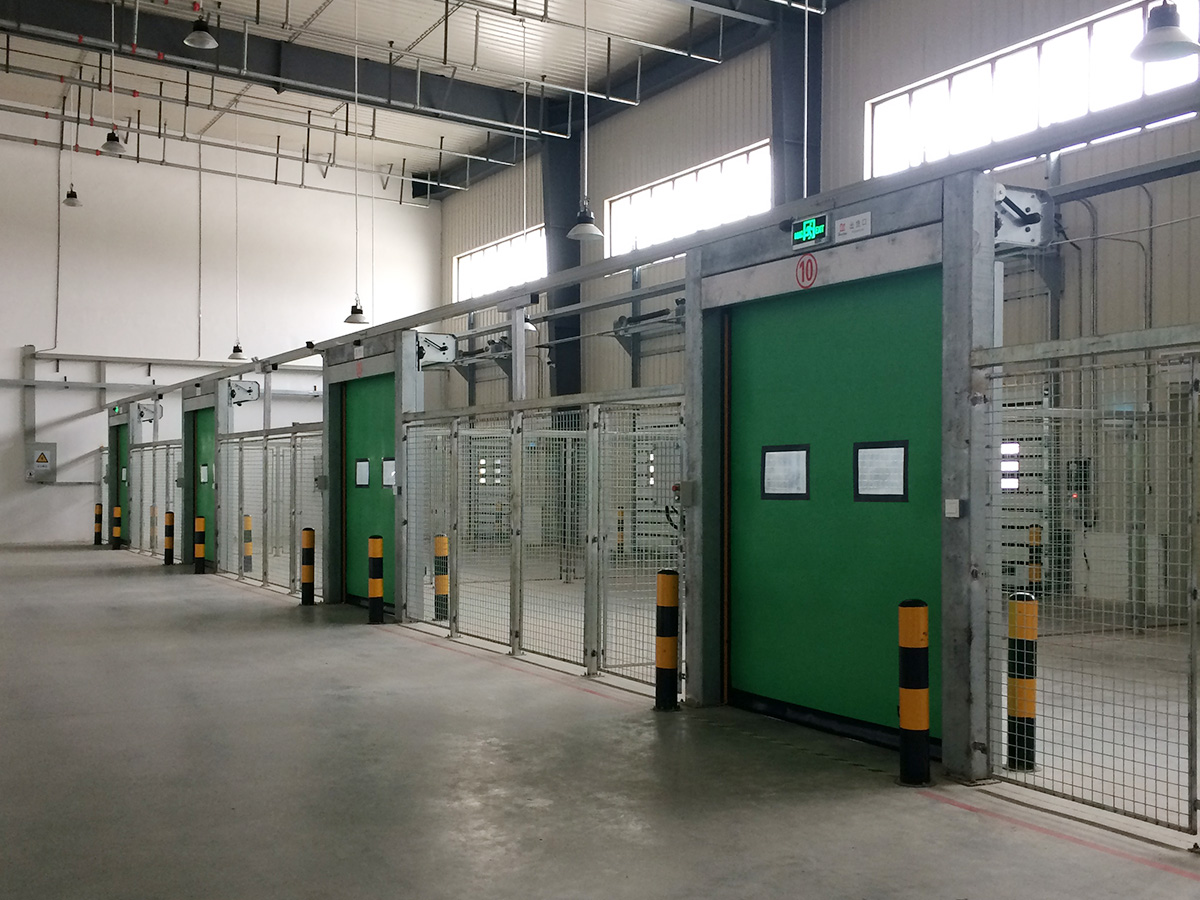

In Huishan Dairy material warehouse, Where forklifts or vehicles often hit the door, LEFAST provides RSD Self-Repairing High Speed Door.
After an impact, the curtain can return to the guides during the next opening cycle, reducing downtime caused by manual maintenance.
For Refrigerated or Low-Temperature Areas
For refrigerated and low-temperature warehouses, temperature control and sealing are important in addition to fast access.

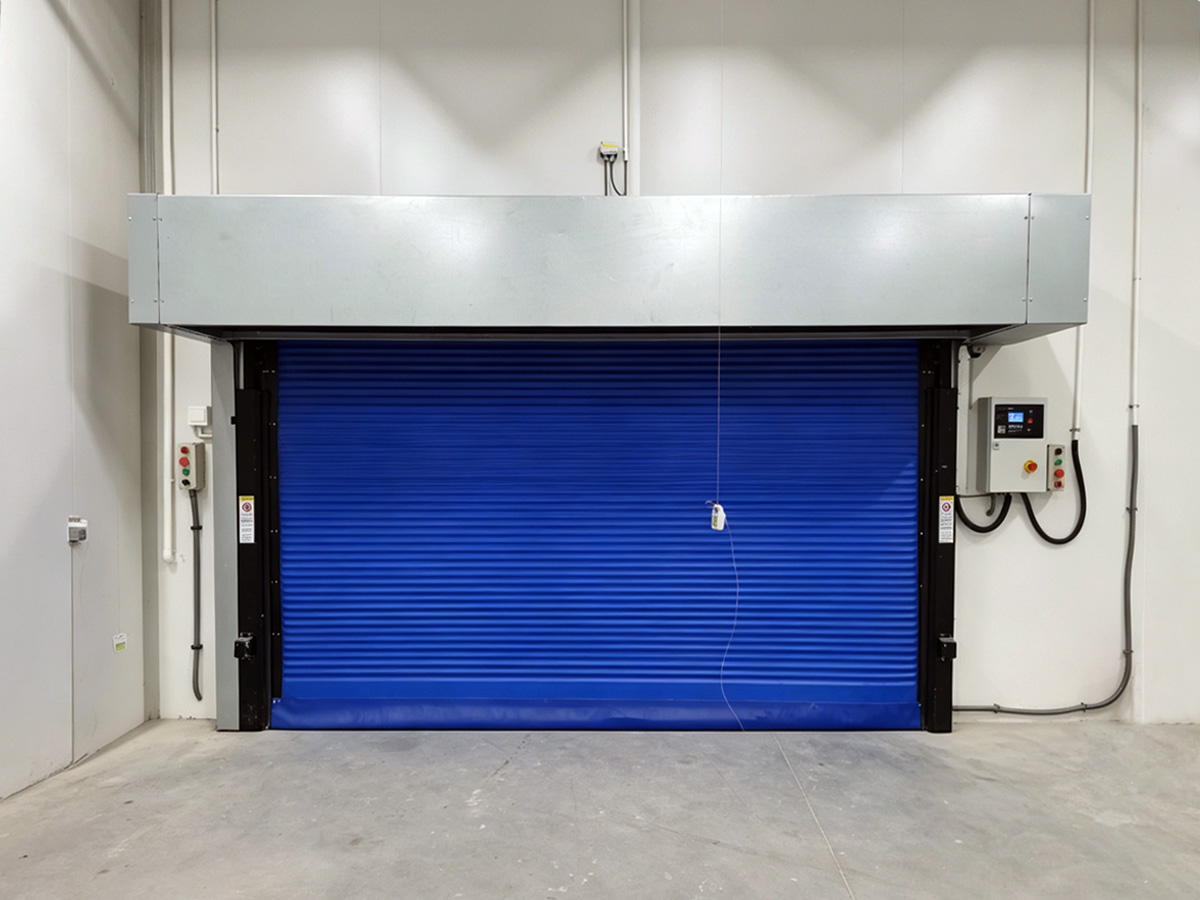

The RCD Self-Repairing Cold Storage Door is designed for these conditions and has been used in the Shanghai Pharma refrigerated warehouse and Synear's low-temperature warehouse.
As you see, the Shanghai Pharma project is also a good example of using different doors in different areas: HSR for ambient storage and RCD for refrigerated areas.
Therefore, the final selection should be based on door size, traffic, temperature, wind exposure, impact risk and control requirements, Lefast can make a proposal according to:
- Application and traffic type
- Opening width and height
- Environmental requirements
- Activation and safety requirements
- Access control, interlocking and automation requirements
Share these details with LEFAST, and we can recommend a suitable door configuration for your project.
7. FAQ
What is the best high-speed door for a warehouse?
The best high speed door is defined base on installation location and requirements. For normal-temperature areas, HSR is suitable for frequent traffic. HPD is better suited to larger or more wind-exposed openings, while RSD is a good option where forklift impact is a concern. For refrigerated areas, RCD is designed for low-temperature applications.
What is a high-speed fabric door used for?
A high-speed fabric door is commonly used for warehouse entrances, internal access points, loading areas and connections between different working zones, to enhance efficiency and safety.
Are high-speed fabric doors suitable for exterior warehouse entrances?
Yes, door with a stronger supporting structure depending on the opening size and site conditions. Many different fabric doors are for choices.
Can high-speed doors help reduce warehouse energy loss
Yes, high speed doors open and close faster to reduce the opening exposure and energy loss.
How often should a high-speed warehouse door be maintained?
Maintenance frequency depends on how often the door is used and the working environment. High-performance doors should be inspected regularly, with attention to the curtain, guides, seals, safety devices and drive system. Following the manufacturer's maintenance recommendations can help keep the door operating reliably.
What safety features should a high-speed warehouse door have?
High speed warehouse doors should have infrared sensors, options are safety edges, light curtains and radar detection. Emergency operation and other safety functions.
8. Conclusion
High speed fabric doors provide fast, reliable access for many warehouse applications, while different door types can be selected for larger, high-impact or temperature-controlled areas.
LEFAST can help you choose the right warehouse door solution for your project.
